Twistable Flexible Waveguide
Series No: 118
Part Description

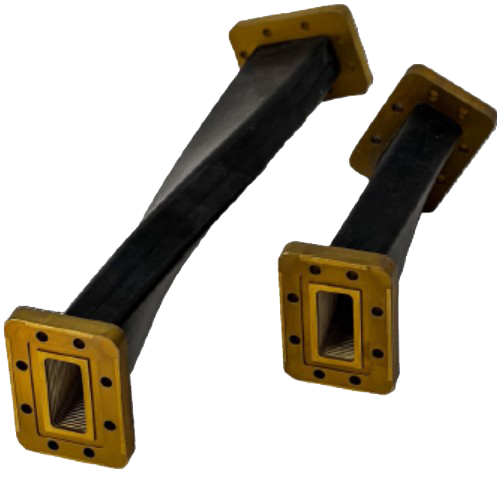

UBS offers a line of twistable flexible or flexible waveguide sections. These sections are manufactured from spiral-wound silver-plated conductors covered with a protective, pressure-tight black neoprene or silicone rubber jacket. All standard waveguide flanges are available. In addition to the popular standard line of flanges listed, UBS offers a complete line of industry-standard flange styles upon request. Please specify the length that is required.
UBS offers a line of twistable flexible or flexible waveguide sections. These sections are manufactured from spiral-wound silver-plated conductors covered with a protective, pressure-tight black neoprene or silicone rubber jacket. All standard waveguide flanges are available. In addition to the popular standard line of flanges listed, UBS offers a complete line of industry-standard flange styles upon request. Please specify the length that is required.
Flange Configuration
| FlangeType | C - Cover G - Groove CHOKE CMR CPR CPR (F,G) |
| Flange Mounting Holes | T1 - Through Holes T2 - Threaded A - Alternating |
| Twist Angle | 1 - 90º Twist 0 - 45º Twist |

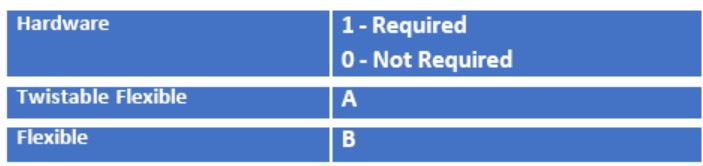

| Hardware | 0 - Not required 1 - Required |
