Step Twist

Series No: 119

Part Description

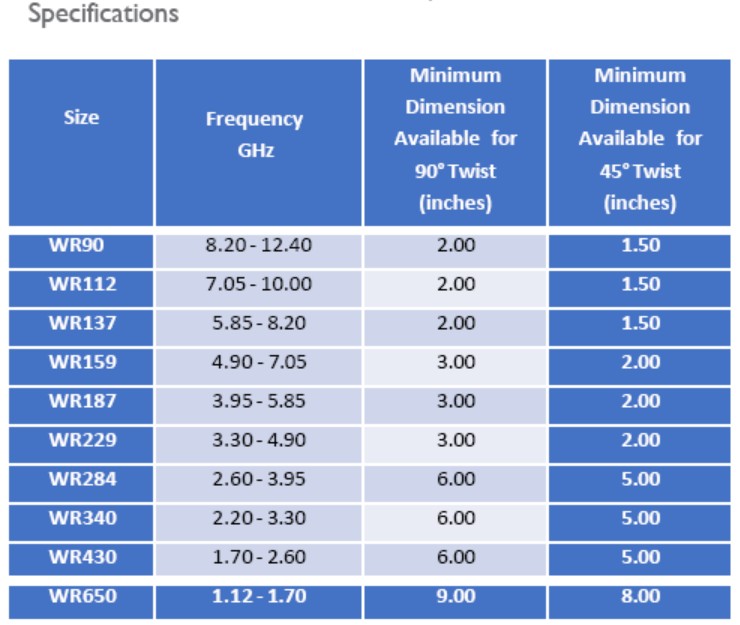

UBS offers a custom product line of Electroformed step twist covering waveguide sizes from WR-90 through
WR-650. Insertion loss is equivalent to straight waveguide sections.

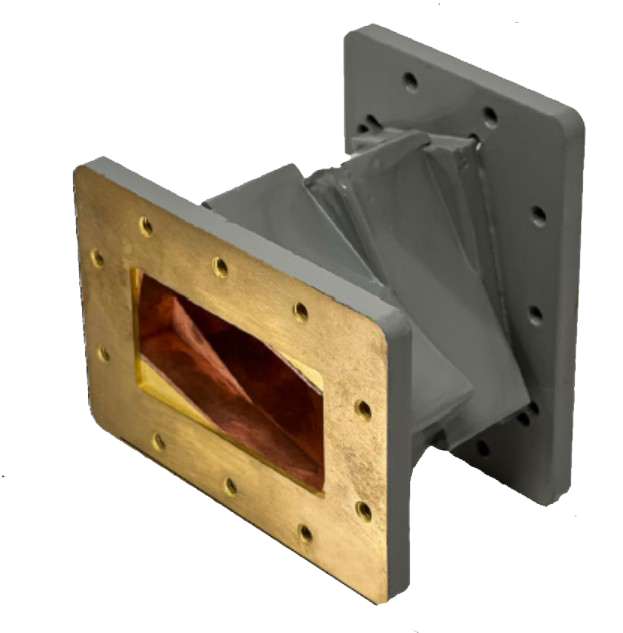

step_twist

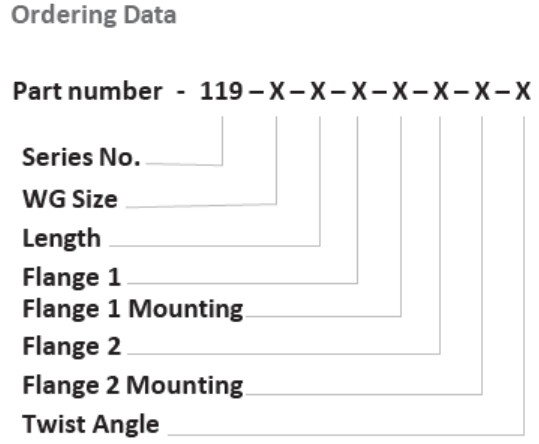

s119_ordering_information
