Termination
(Medium Power)
Series No: 134
Part Description
UBS’ standard product line of medium power terminations is constructed of normal wall waveguide tubing and extruded heat sink material. The load elements are custom-ground silicon carbide spears tapered for an optimum VSWR response of 1.10 max. Maximum power handling capacity: 25 watts for waveguide sizesWR-28 toWR-62, 50 watts for waveguide sizes WR-75 to WR-430.
UBS’ standard product line of medium power terminations is constructed of normal wall waveguide tubing and extruded heat sink material. The load elements are custom-ground silicon carbide spears tapered for an optimum VSWR response of 1.10 max. Maximum power handling capacity: 25 watts for waveguide sizesWR-28 toWR-62, 50 watts for waveguide sizes WR-75 to WR-430.

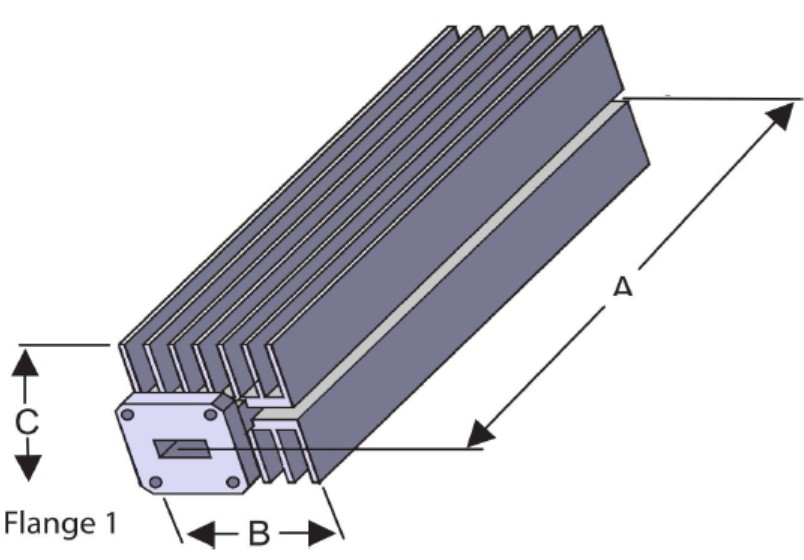

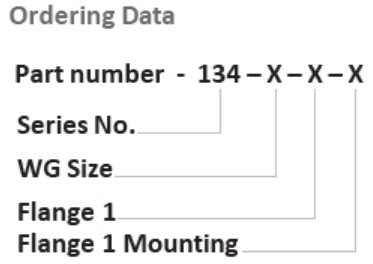

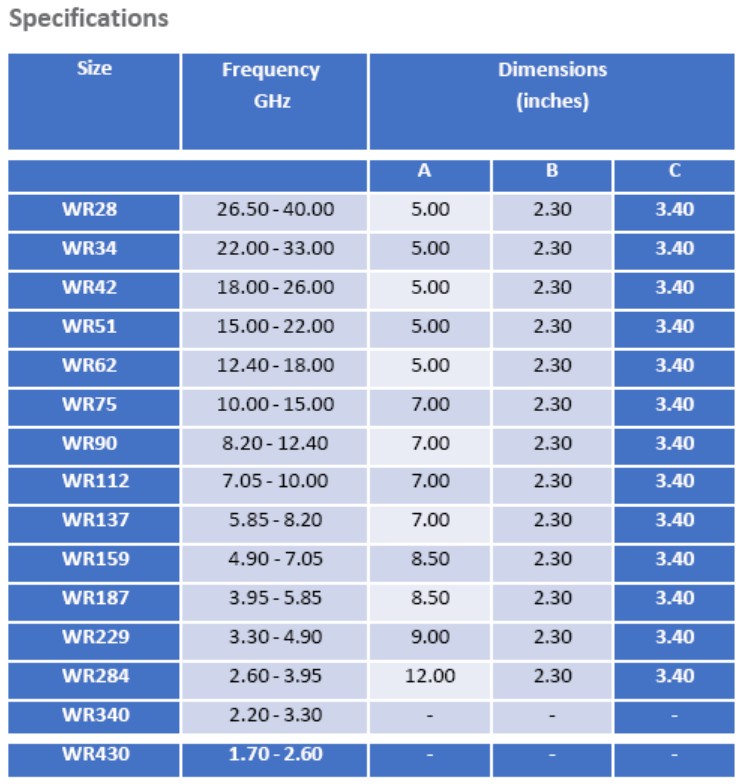

Flange Configuration
| FlangeType | C - Cover G - Groove CHOKE CMR CPR CPR (F,G) |
| Flange Mounting Holes | T1 - Through Holes T2 - Threaded A - Alternating |
| Twist Angle | 1 - 90º Twist 0 - 45º Twist |
| Hardware | 0 - Not required 1 - Required |
