Termination
(High Power)

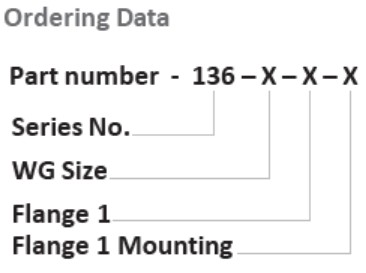

Series No: 136
Part Description

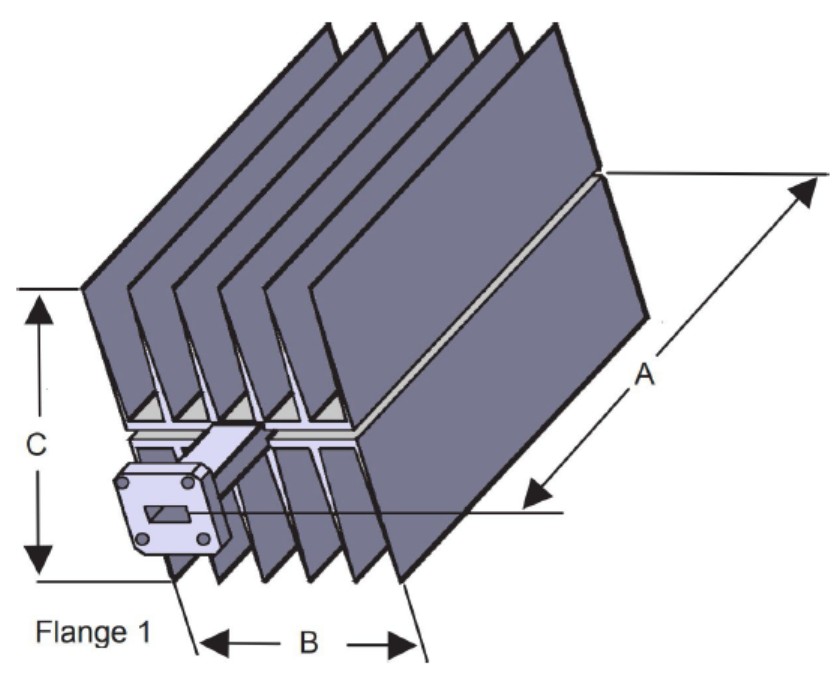

UBS’ standard product line of short-length high power terminations is constructed similarly to themedium power terminations.
UBS’ standard product line of short-length high power terminations is constructed similarly to themedium power terminations.

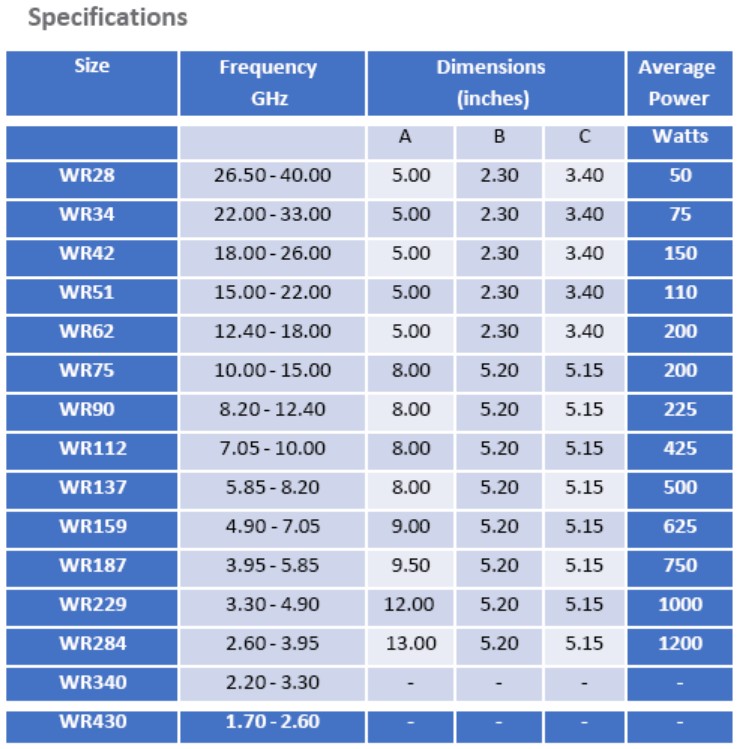

Notes:
1. All dimensions are for reference only
2. Depending on waveguide size and power requirements, the termination may require a heatsink. If required, UBS will
advise and quote the termination with the heatsink included
3. All heatsinks selected based on natural convection cooling. For Forced air cooling, contact UBS.
1. All dimensions are for reference only
2. Depending on waveguide size and power requirements, the termination may require a heatsink. If required, UBS will
advise and quote the termination with the heatsink included
3. All heatsinks selected based on natural convection cooling. For Forced air cooling, contact UBS.
Flange Configuration
| FlangeType | C - Cover G - Groove CHOKE CMR CPR CPR (F,G) |
| Flange Mounting Holes | T1 - Through Holes T2 - Threaded A - Alternating |
| Twist Angle | 1 - 90º Twist 0 - 45º Twist |
| Hardware | 0 - Not required 1 - Required |
