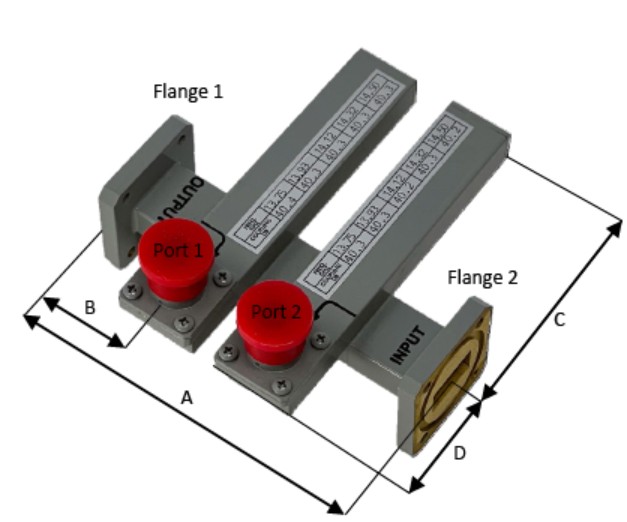

Dual Cross Guide Coupler
Series No: 150
Part Description
UBS directional crossguide couplers utilize an ultra-flat coupling technique that exhibits high power handling characteristics while maintaining optimum electrical performance parameters.
UBS directional crossguide couplers utilize an ultra-flat coupling technique that exhibits high power handling characteristics while maintaining optimum electrical performance parameters.

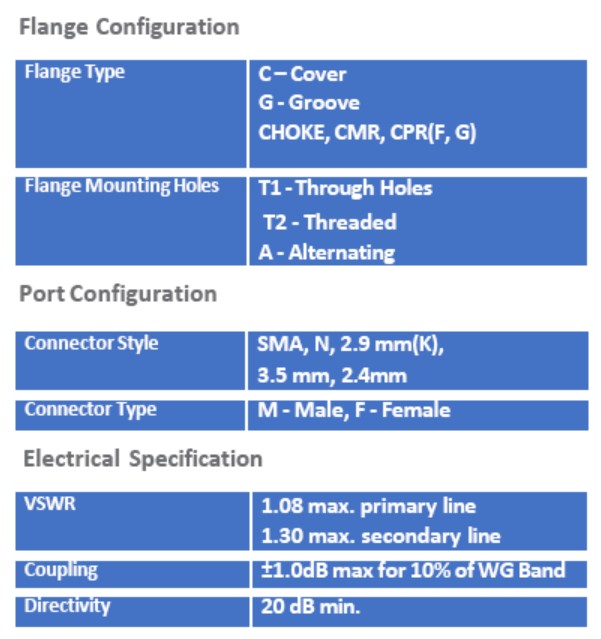

Coupling: 20, 30, 40, 50 and 60 dB
Note: For connector style, contact factory for 2.9 mm(K), 3.5 mm, 2.4 mm
Note: For connector style, contact factory for 2.9 mm(K), 3.5 mm, 2.4 mm
