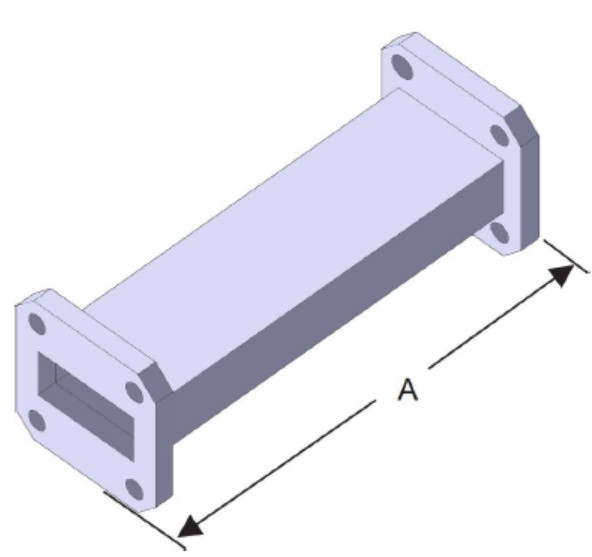

Fixed Attenuator
Series No: 152
Part Description

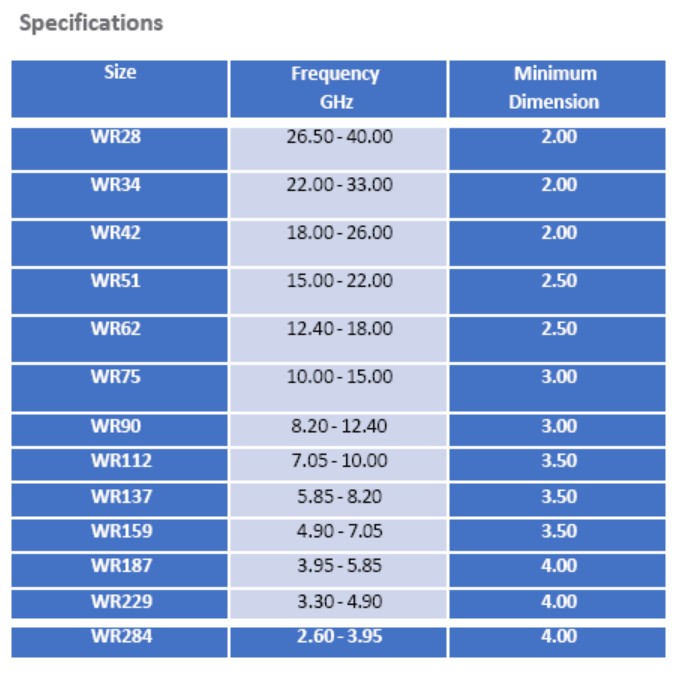

UBS offers a series of rectangular waveguide precision attenuators covering waveguide sizes from WR-28 through WR- 284. The assembly construction includes precision ground observing elements for optimum electrical performance. Attenuation flatness is +/- 0.5 dB over the 30% bandwidth and +/- 1.5 dB Full Band. The max. power rating for all waveguide sizes is 1 watt WR-28 to WR-62.
UBS offers a series of rectangular waveguide precision attenuators covering waveguide sizes from WR-28 through WR- 284. The assembly construction includes precision ground observing elements for optimum electrical performance. Attenuation flatness is +/- 0.5 dB over the 30% bandwidth and +/- 1.5 dB Full Band. The max. power rating for all waveguide sizes is 1 watt WR-28 to WR-62.
