Configuration
Waveguide Section
| FlangeType | C - Cover G - Groove CHOKE CMR CPR CPR (F,G) |
| Flange Mounting Holes | T1 - Through Holes T2 - Threaded A - Alternating |
| Material | C - Copper A - Aluminum B - Bronze |
| Mark | Shape |

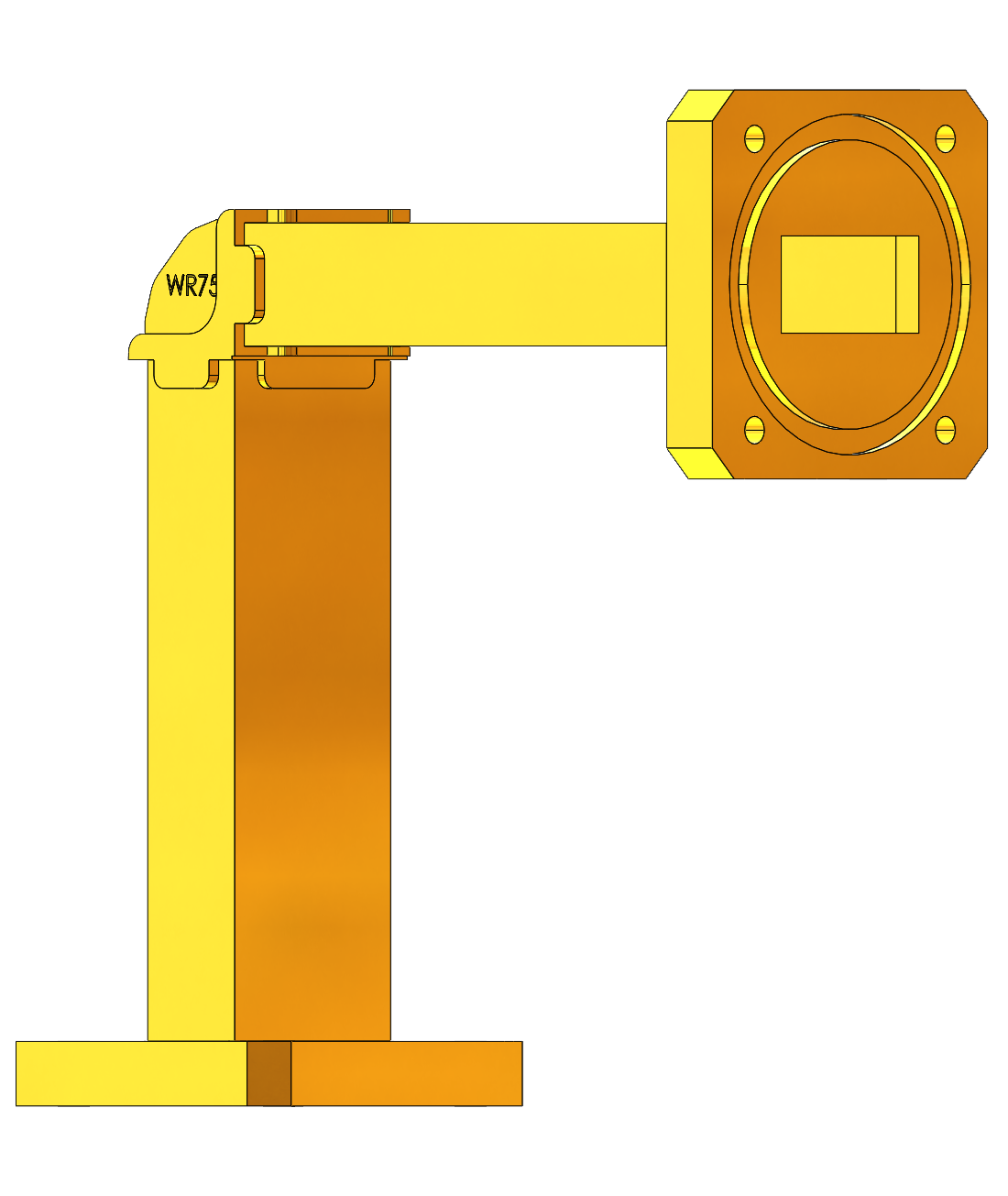

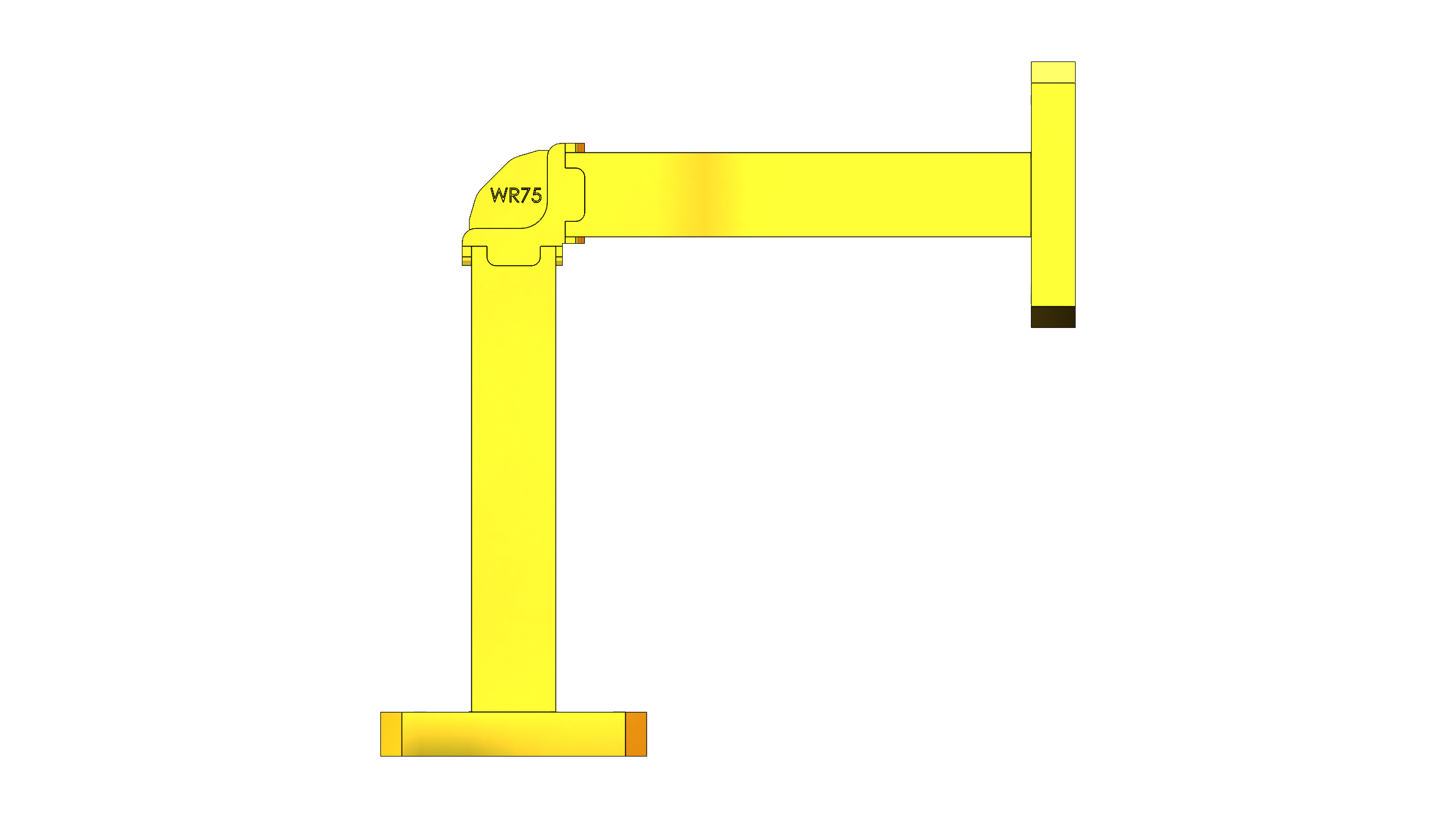

| E | E-BEND, BEND ALONG THE WIDE WAVEGUIDE SIDE |

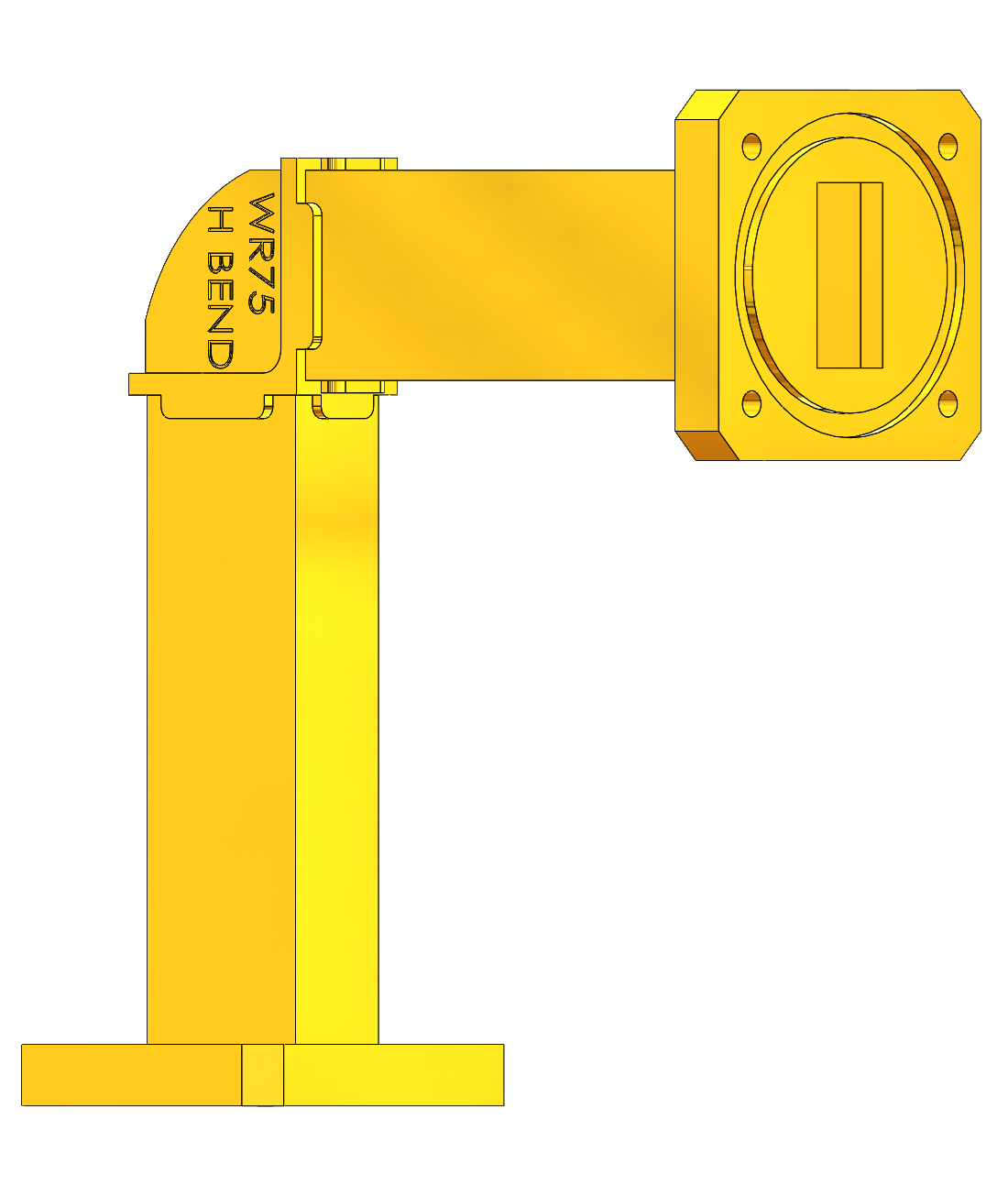

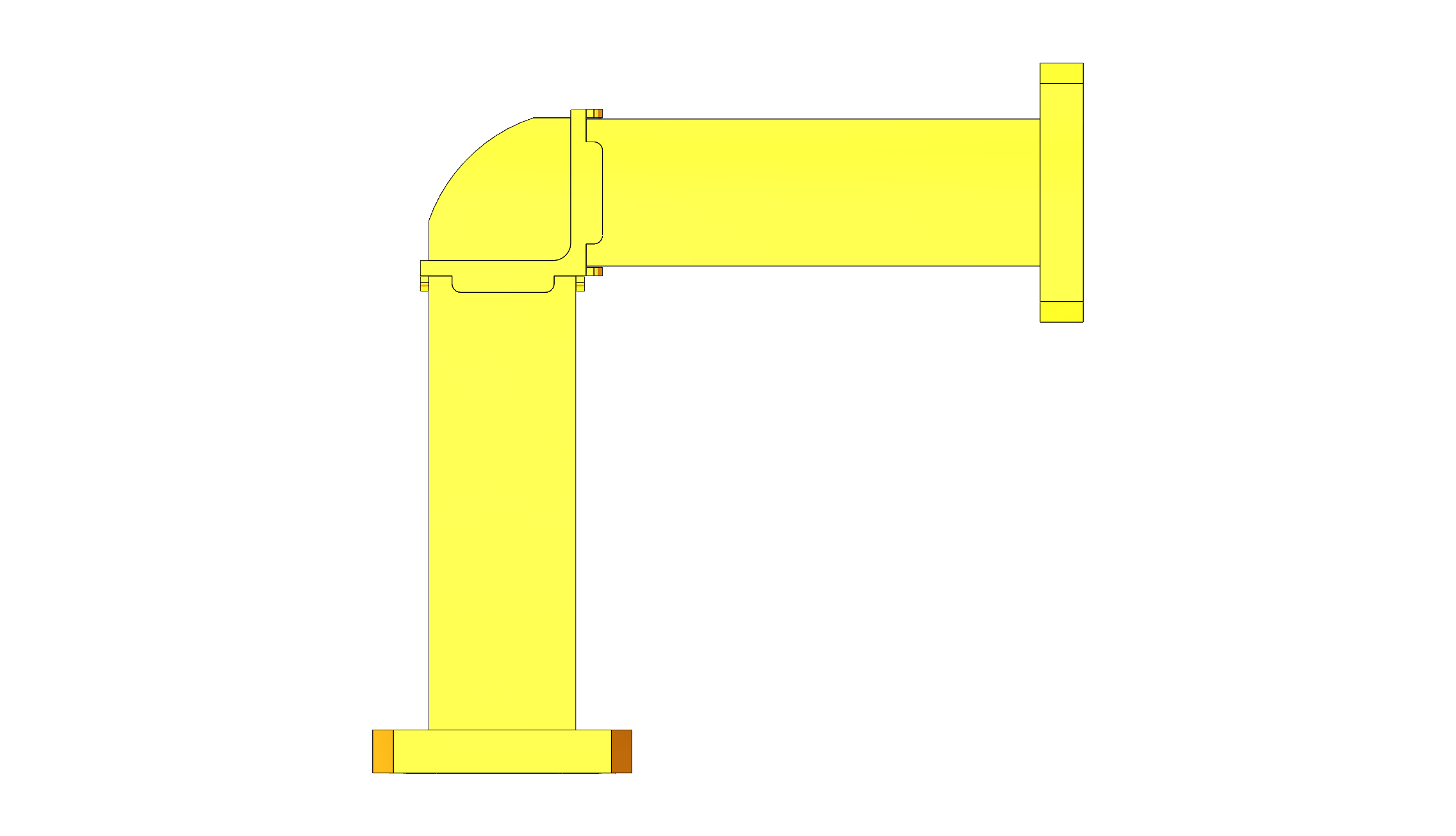

| H | H-BEND, BEND ALONG THE NARROW WAVEGUIDE SIDE |

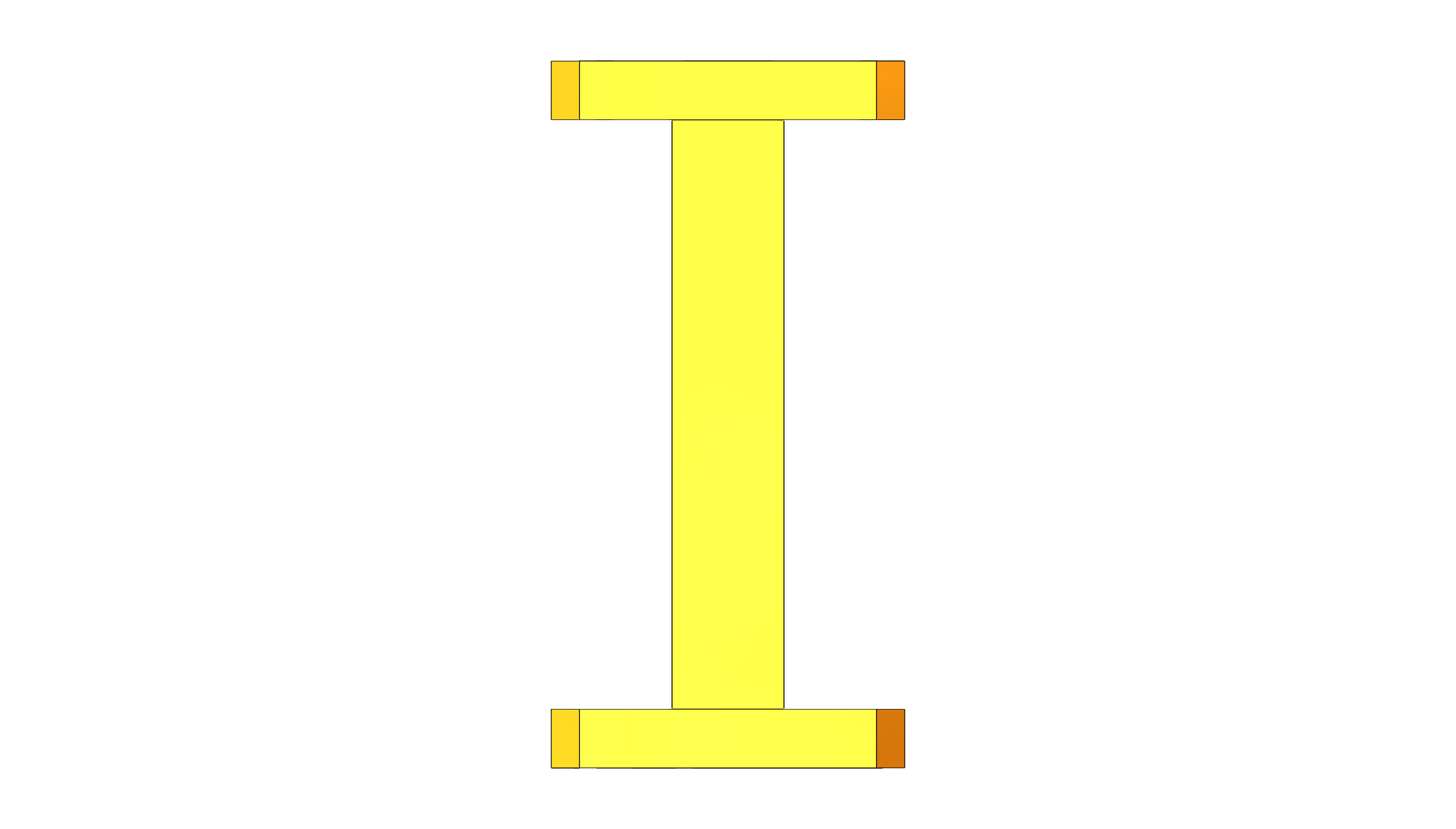

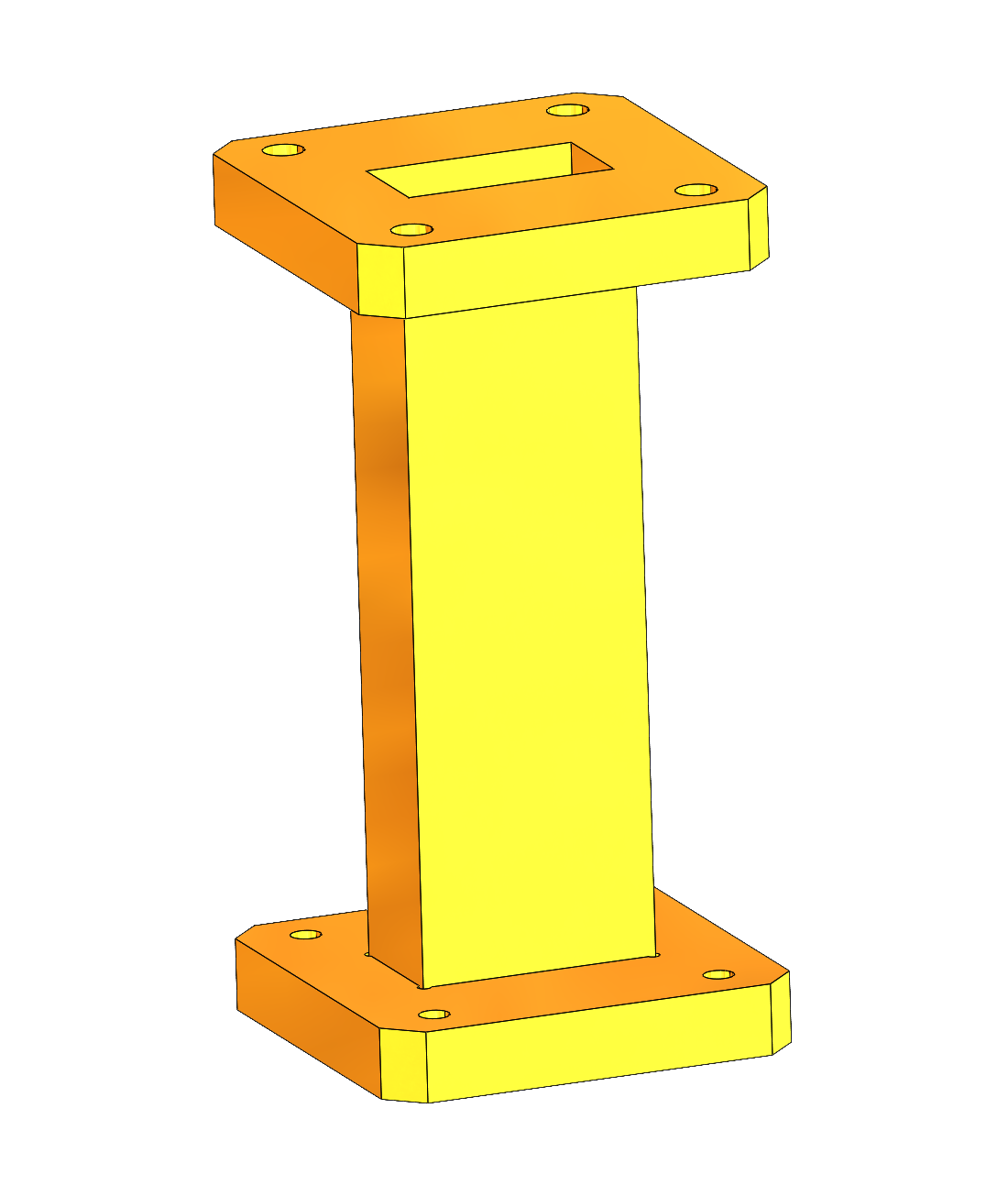

| S | STRAIGHT SOLID WAVEGUIDE SECTION |
| F | STRAIGHT FLEX FLEXIBLE WAVEGUIDE |

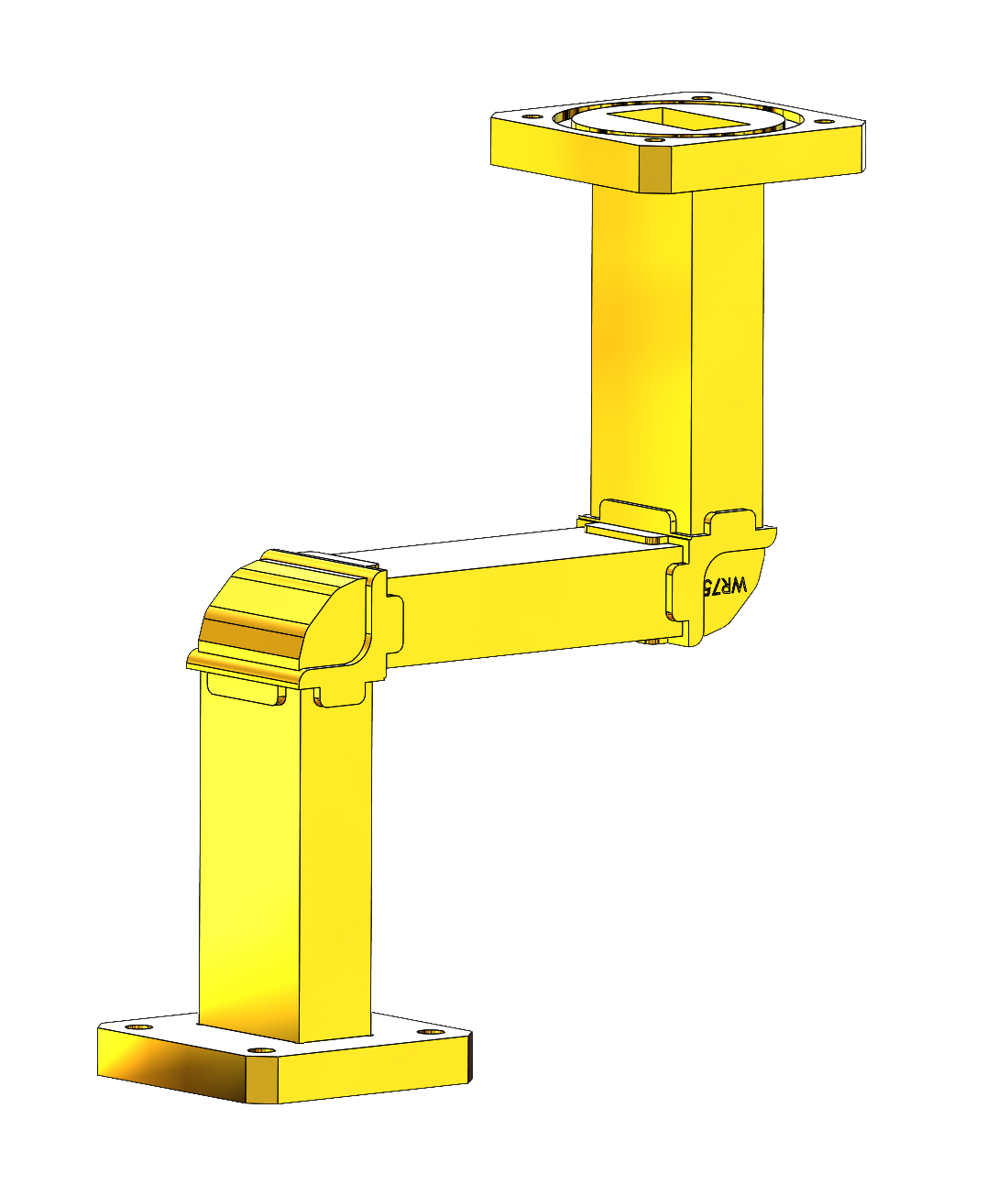

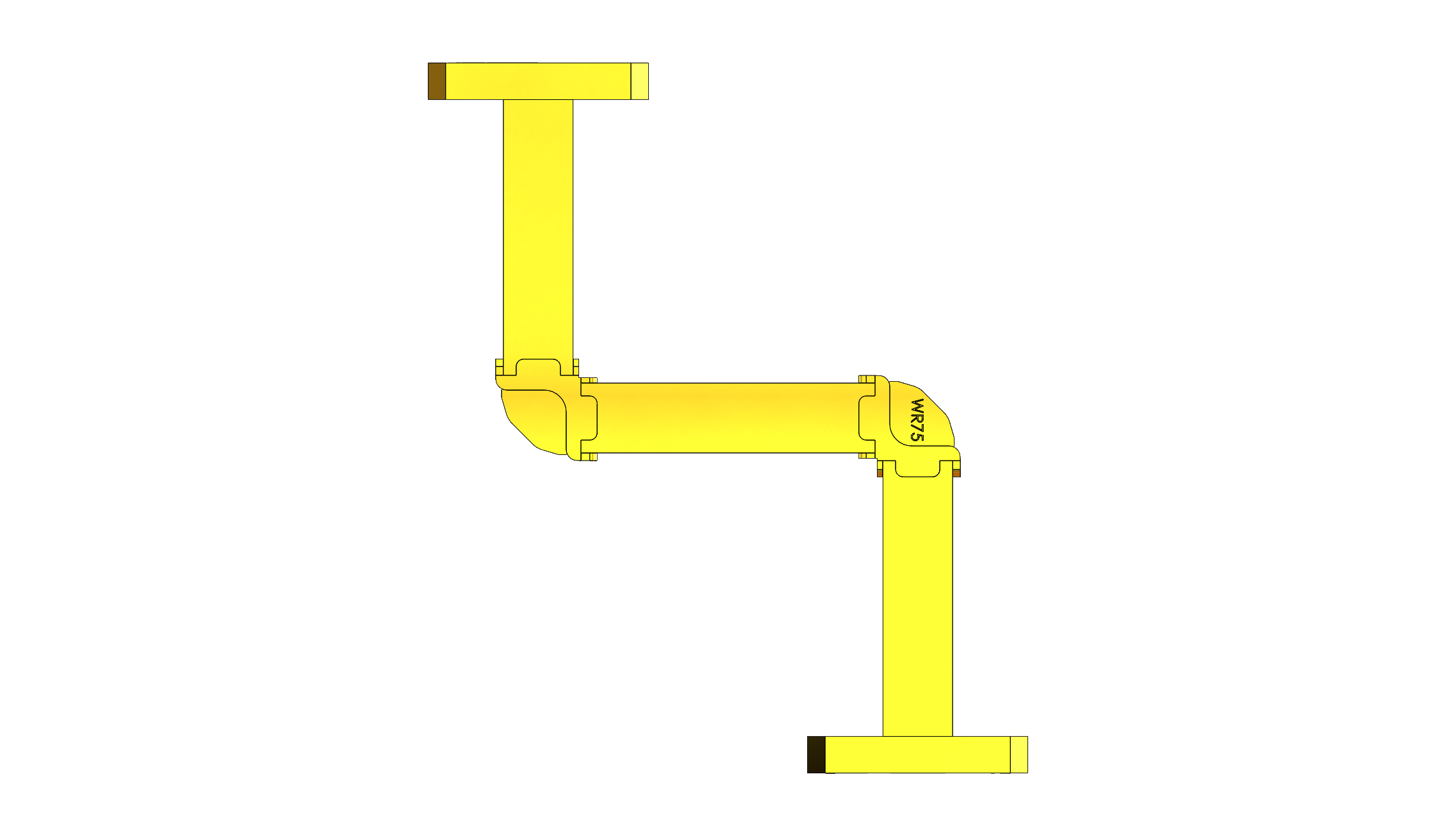

| A | S-BEND, E-PLANE, S SHAPE BEND IN THE E PLANE |

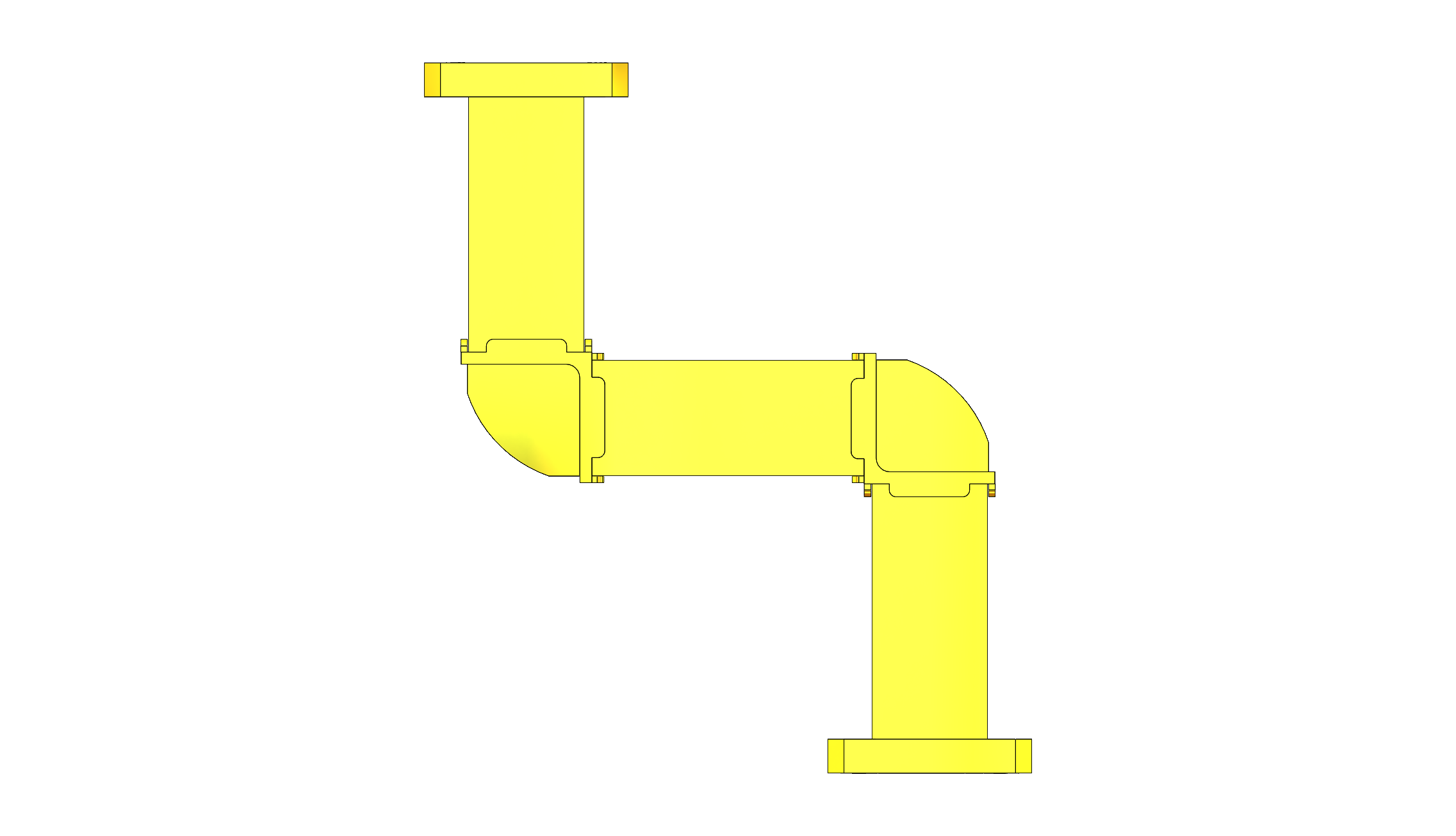

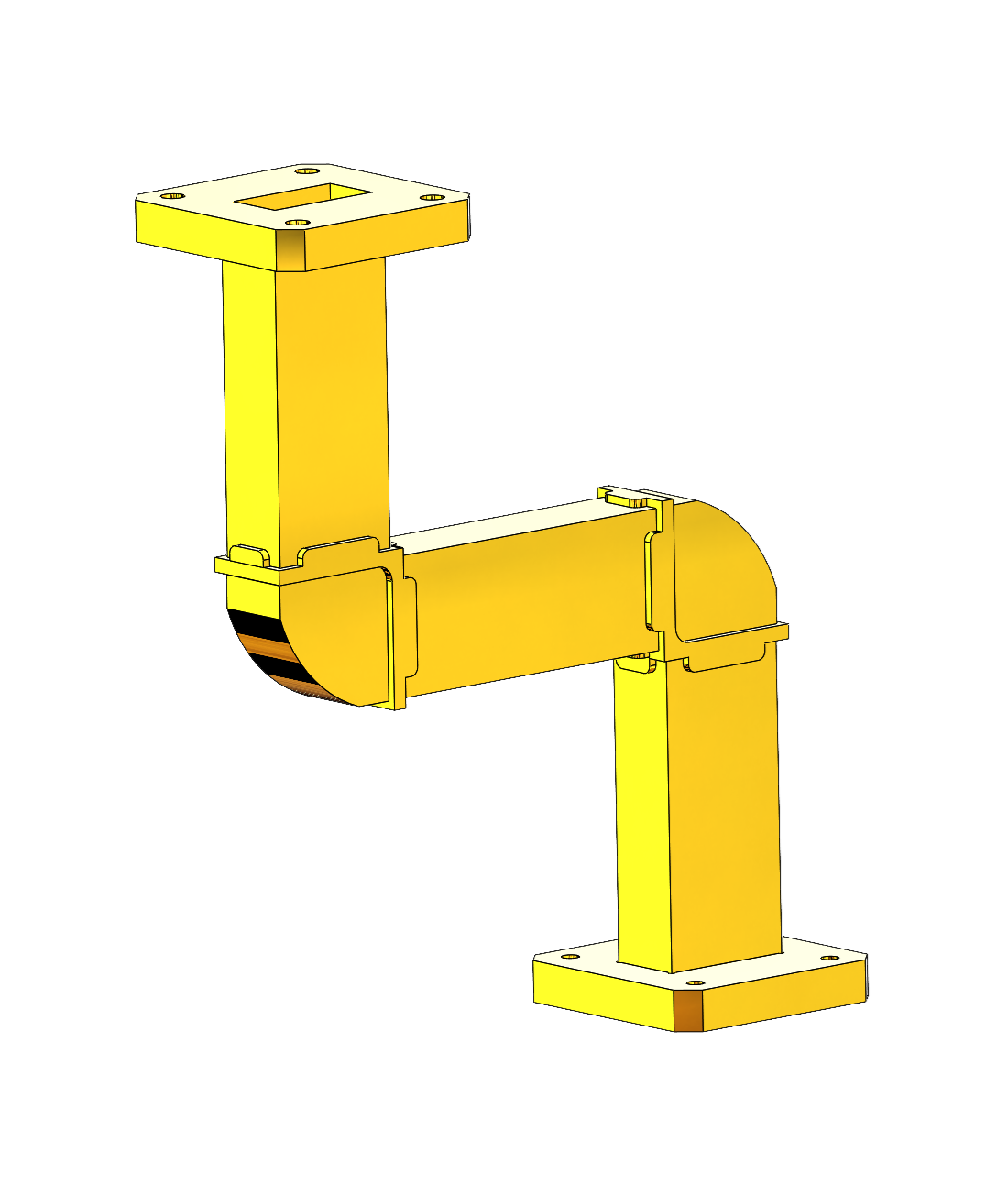

| Y | S-BEND, H-PLANE, S SHAPED BEND IN THE H PLANE |

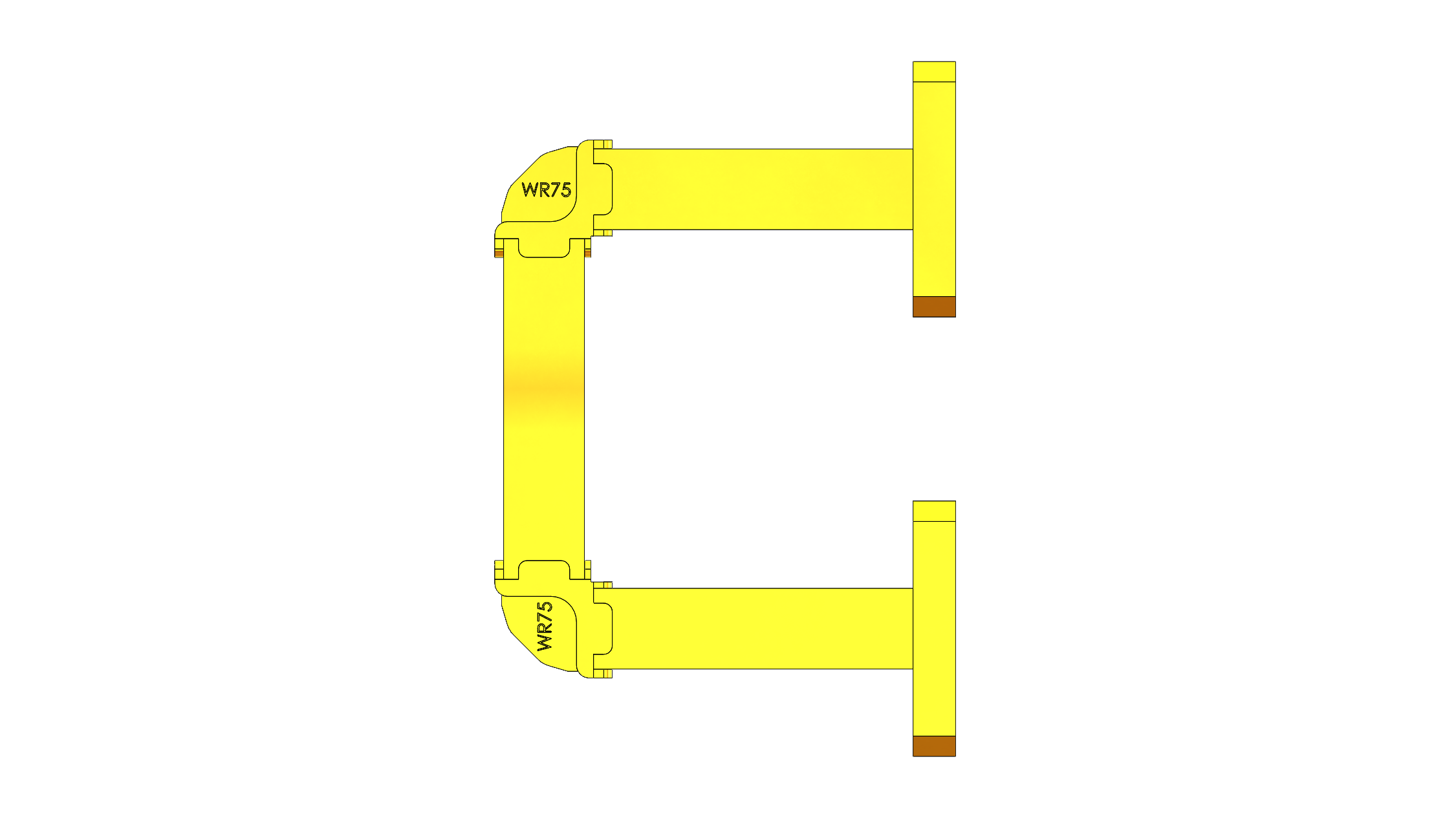

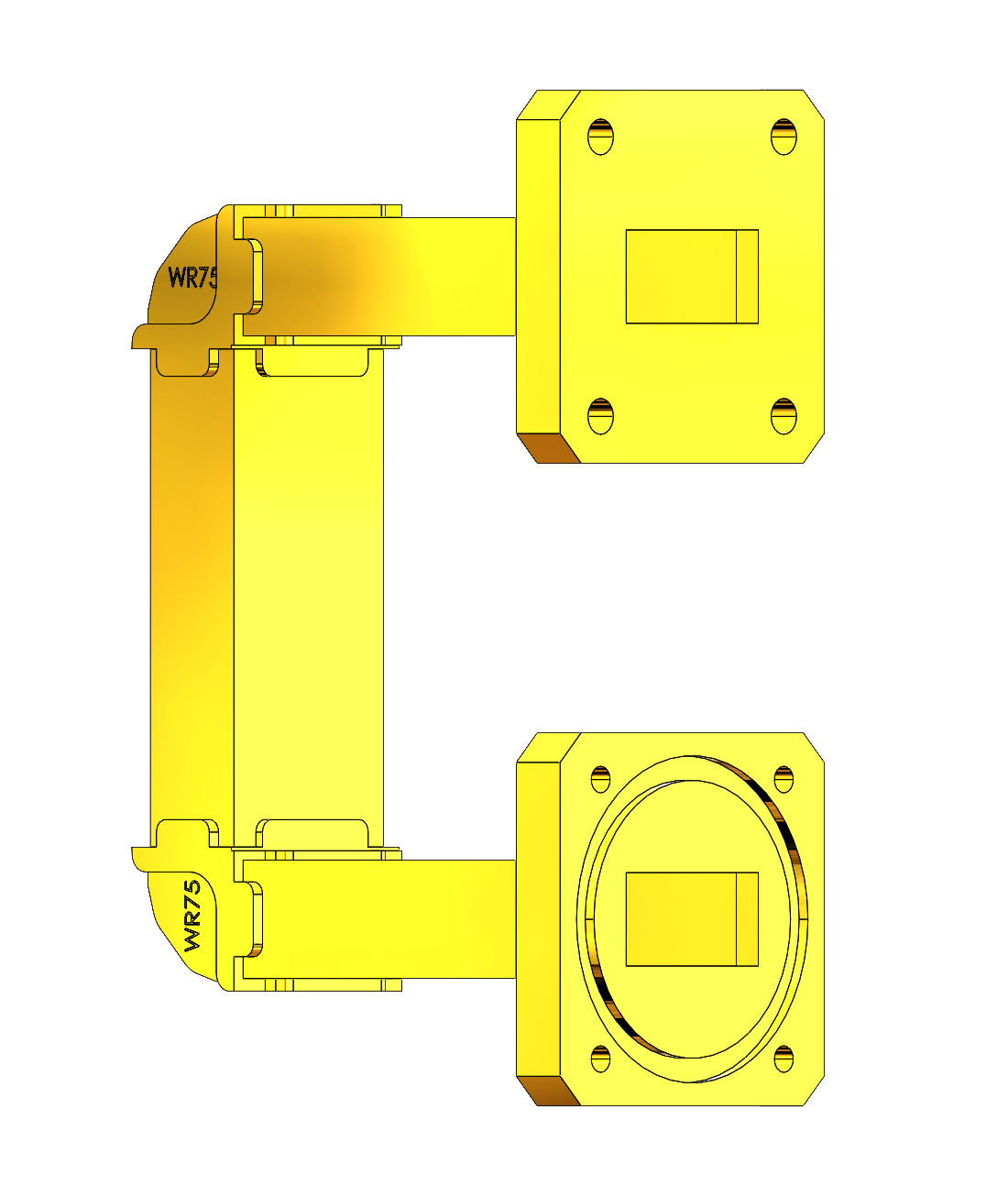

| V | U-BEND, E-PLANE, U BEND IN THE E PLANE |

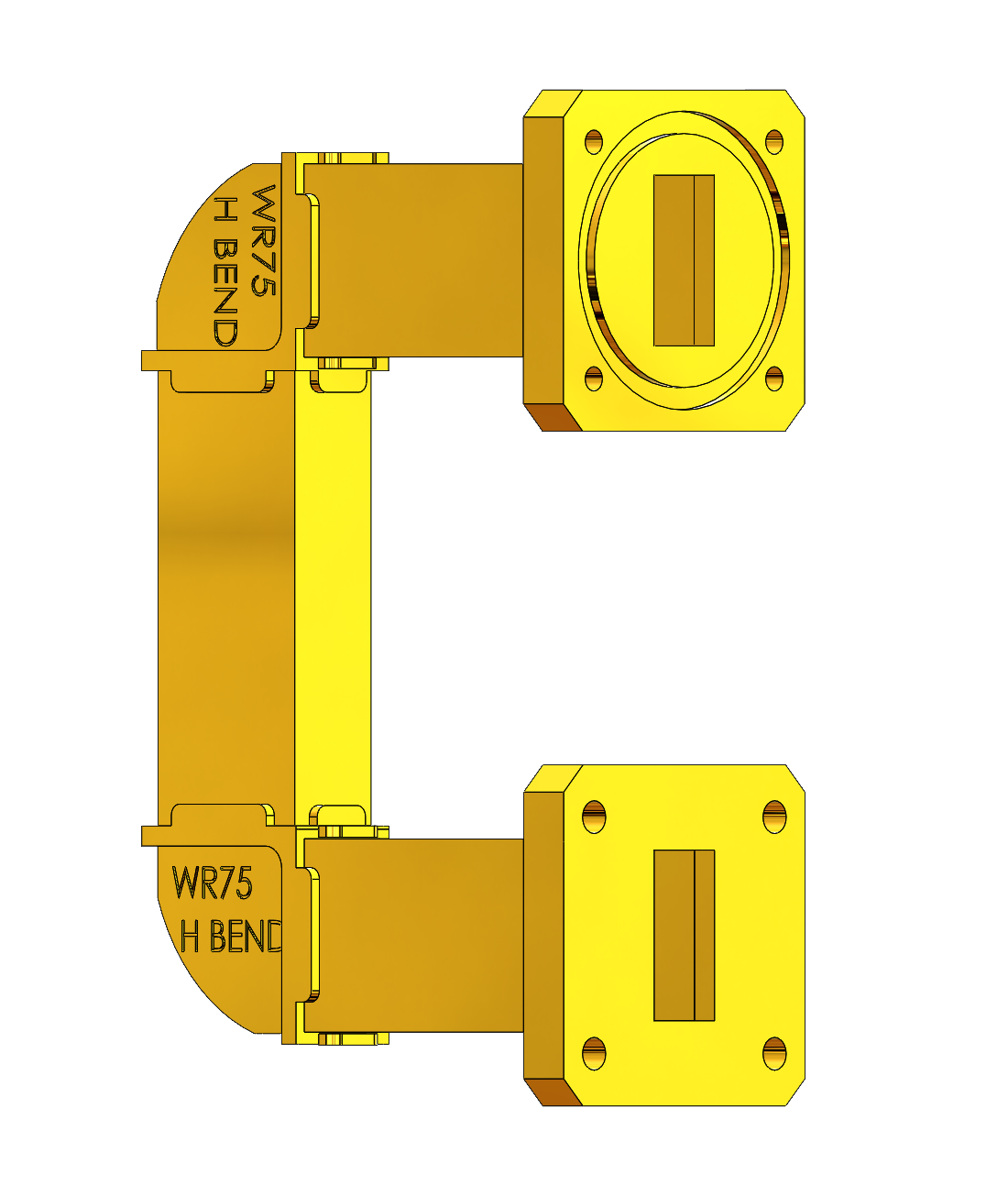

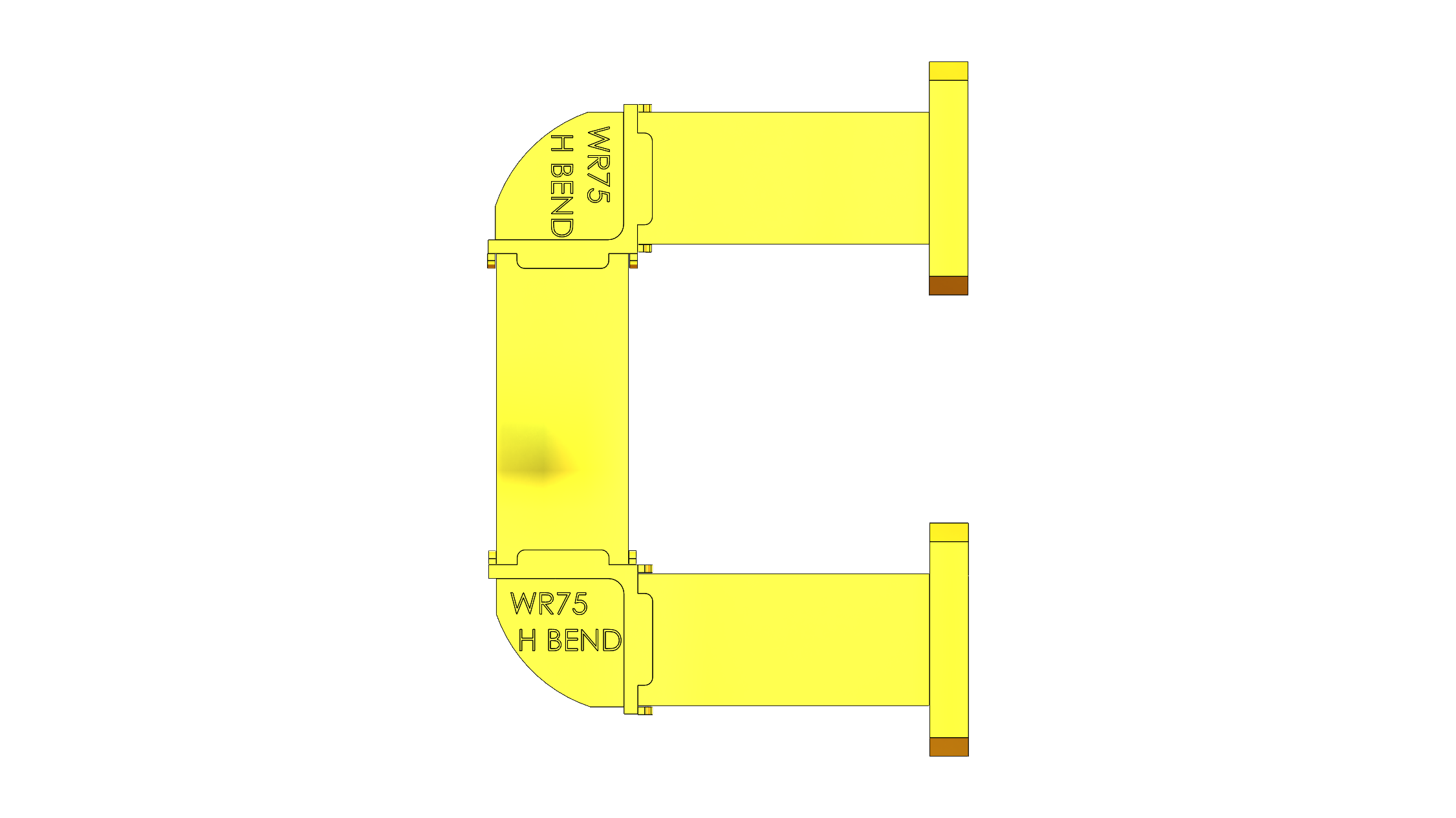

| Z | U-BEND, H-PLANE, U BEND IN THE H PLANE |

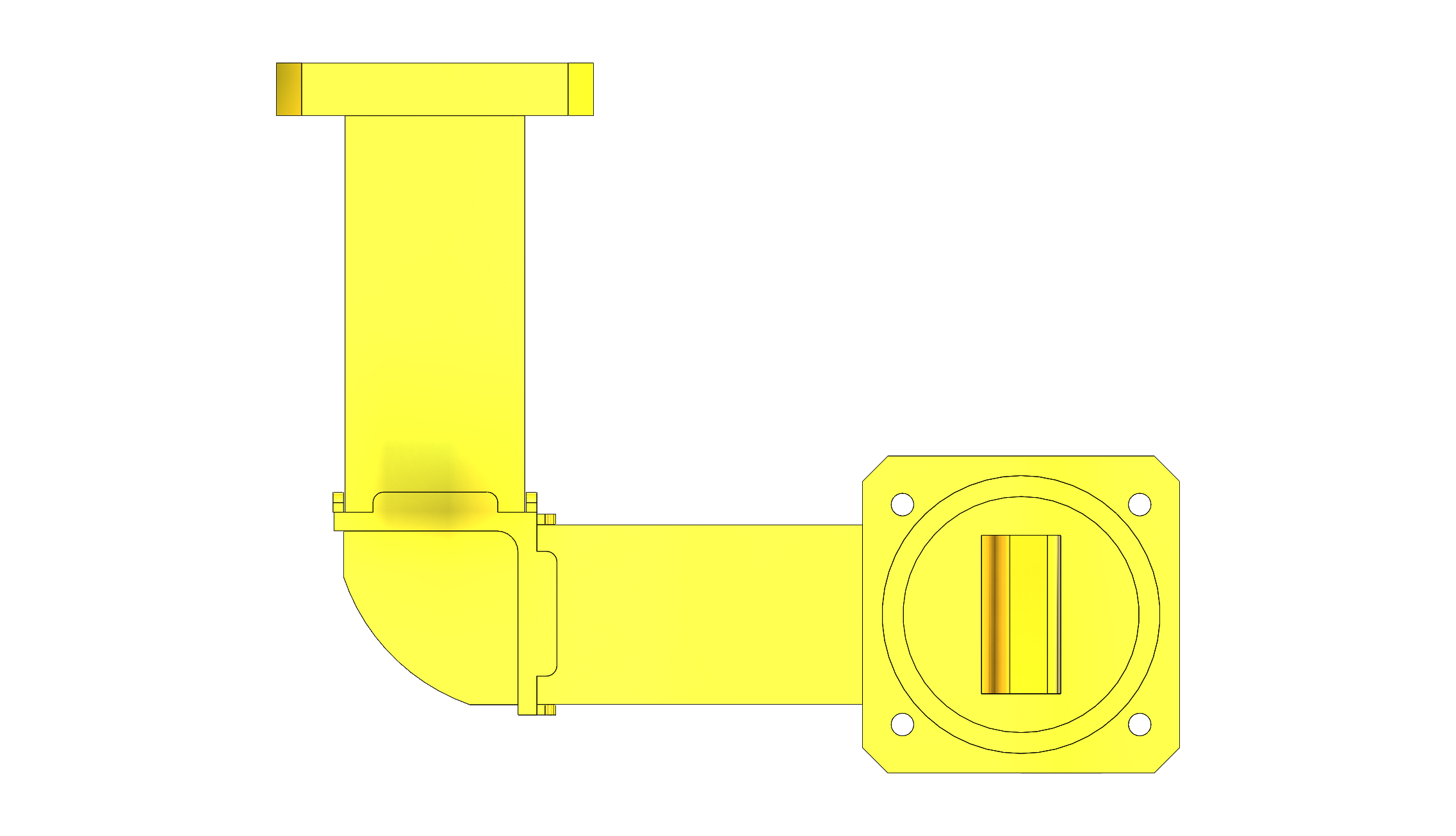

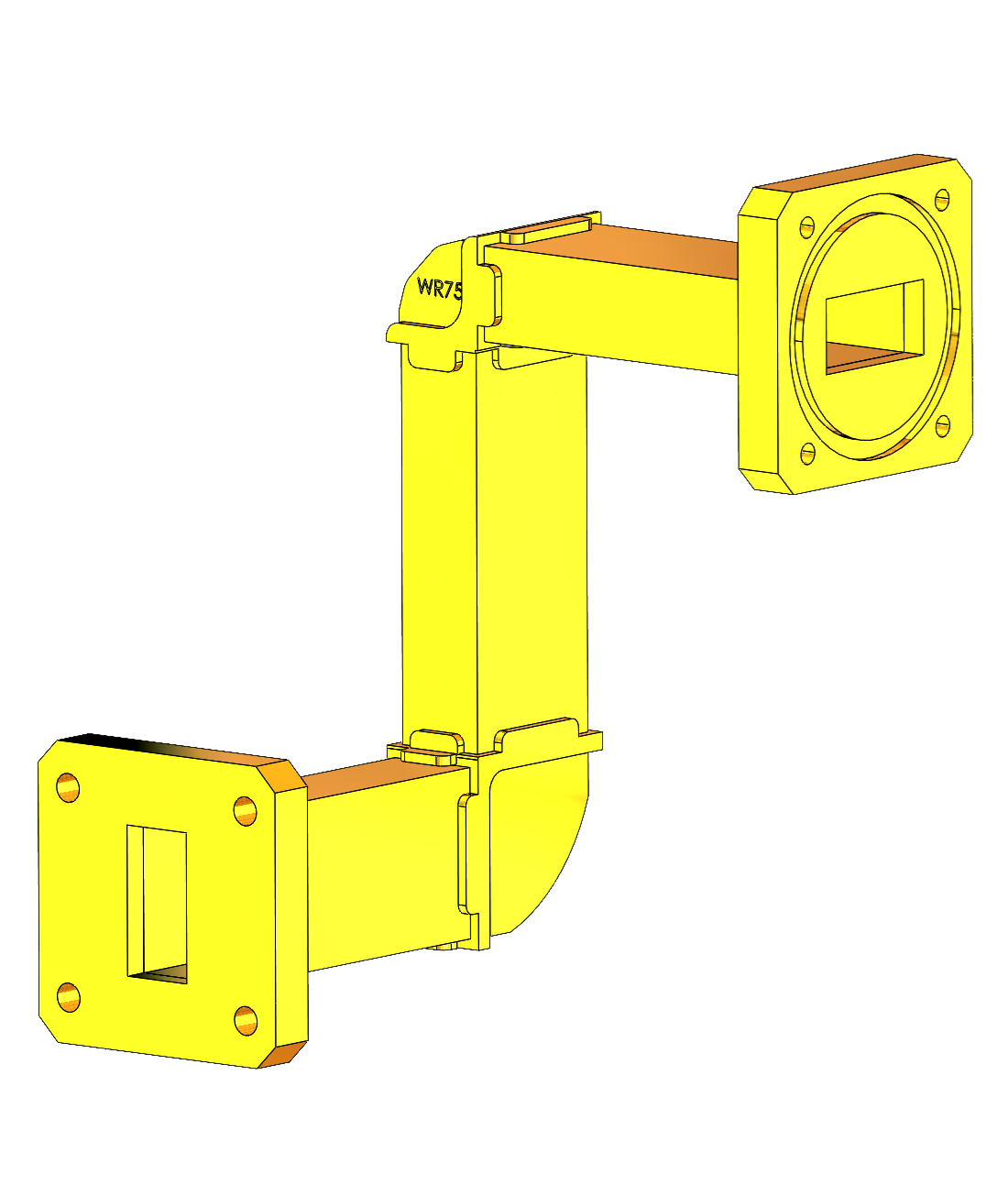

| W | COMPOSITE BEND TYPE "W" |

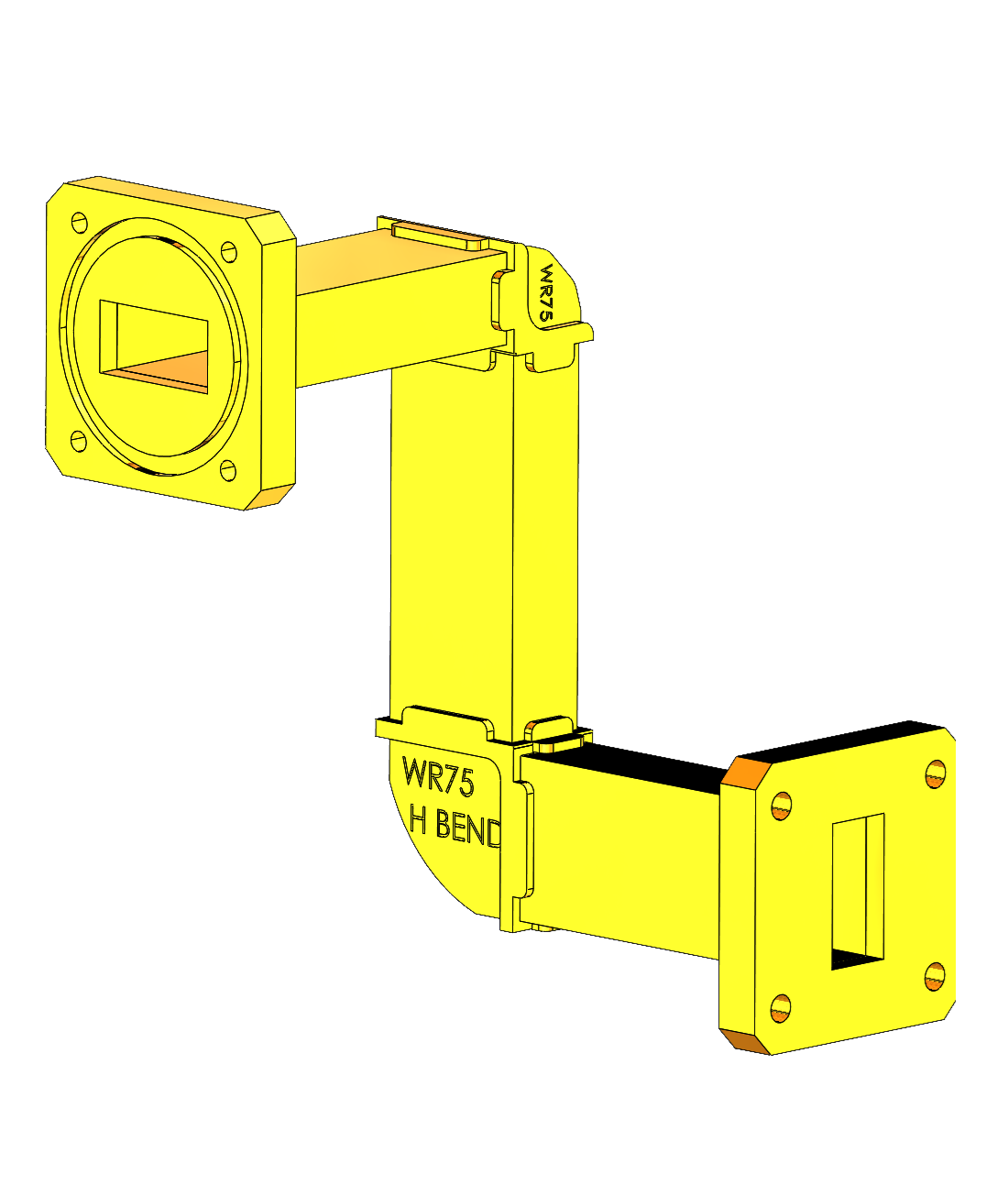

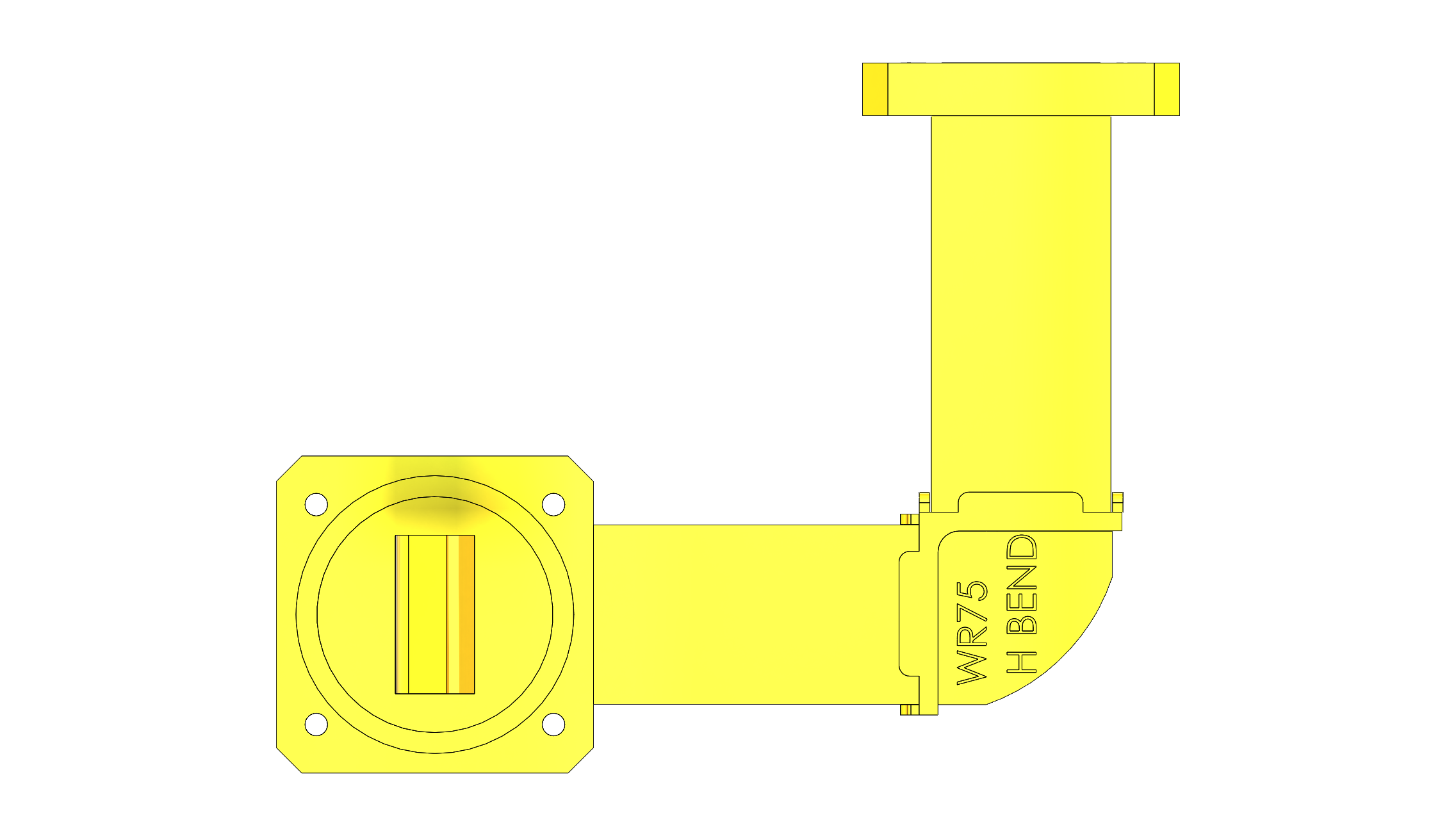

| M | COMPOSITE BEND TYPE "M" |
| Size | Freq. (GHz) |
C | G | CHOKE | CMR | CPR |
| WR28 | 26.50 - 40.00 | • | • | • | ||
| WR34 | 22.00 - 33.00 | • | • | • | ||
| WR42 | 18.00 - 26.50 | • | • | • | ||
| WR51 | 15.00 - 22.00 | • | • | • | ||
| WR62 | 12.40 - 18.00 | • | • | • | ||
| WR75 | 10.00 - 15.00 | • | • | • | • | • |
| WR90 | 8.20 - 12.40 | • | • | • | • | • |
| WR102 | 7.00 - 11.00 | • | • | • | • | • |
| WR112 | 7.05 - 10.00 | • | • | • | • | • |
| WR137 | 5.85 - 8.20 | • | • | • | • | • |
| WR159 | 4.09 - 7.05 | • | • | • | • | • |
| WR187 | 3.95 - 5.85 | • | • | • | • | • |
| WR229 | 3.30 - 4.90 | • | • | • | • | • |
| WR284 | 2.60 - 3.95 | • | • | • | • | • |
| WR340 | 2.20 - 3.30 | • | • | • | • | • |
| WR430 | 1.70 - 2.60 | • | • | • | • | • |
| WR650 | 1.12 - 1.70 | • | • | • | • | • |
Waveguide Size
SELECT FLANGES
FLANGE1
FLANGE2
FLANGE1 HOLES
SECTION LENGTH IN 0.1" INCREMENTS ( 010 BEING 1 INCH )
MATERIAL
SELECT LAYOUT
SELECT WG SIZE
PART NUMBER
Canada & USA 1-877-669-8533
Contact: Technical or Sales: sales@uniquesys.com
Canadian Made Advanced Technologies
CAGE CODE: L0LD9
Copyright 2020 Unique Broadband Systems a DOL Technologies Inc. Company | Designed by Goldenhands Contracting Inc.
Unique Broadband Systems
a DOL Technologies Inc. Company
230 Bayview Drive Unit 16 Barrie,
ON L4N 4Y8
Phone: 905-669-8533
Fax: 905-669-8516
Toll Free: 1-877-669-8533
Rectangular Waveguide
Series No: 111
Part Description
RectangularWaveguideProductLine
UBS manufactures and sells rectangular waveguide raw materials insizes ranging from WR-28 to WR-650. UBS is also able to manufacture products from other industry-standard waveguide sizes upon request. There is a large stock of standard sizes available for immideate shipping.
In addition to the standard line of waveguide products offered in this catalog, UBS also is a supplier of OEM products to the military and commercial communications industry. UBS has the experienced staff and the resources to develop and manufacture waveguide components specific to your OEM application.
Rectangular Waveguide Section Numbering System
The UBS rectangular waveguide section numbering system allows the end user to specify the exact wave guide section(s)required.
RectangularWaveguideProductLine
UBS manufactures and sells rectangular waveguide raw materials insizes ranging from WR-28 to WR-650. UBS is also able to manufacture products from other industry-standard waveguide sizes upon request. There is a large stock of standard sizes available for immideate shipping.
In addition to the standard line of waveguide products offered in this catalog, UBS also is a supplier of OEM products to the military and commercial communications industry. UBS has the experienced staff and the resources to develop and manufacture waveguide components specific to your OEM application.
Rectangular Waveguide Section Numbering System
The UBS rectangular waveguide section numbering system allows the end user to specify the exact wave guide section(s)required.
Materials
Straight and complex sections can bespecified from high-conductivity copper, bronze, or aluminum. Flexible waveguide is manufactured from a convoluted beryllium-copper alloy material that is fully pressurizable and flexible in both the E plane and H plane. Longitudinal twists are not possible with this type of flexible waveguide. If a rigid longitudinal twist section is required, a suitable one can be specified from the UBS112 series. For longitudinal twist use the 118 series offlexible twistable waveguides.
Section Dimensions
The maximum length of a rigid waveguide is 6ft, a flexible waveguide is 2ft,and a flexible twistable waveguideis 4ft.
Tips and Suggestions
Large sections manufactured from copper should be avoided. Instead, use bronze for additional strength.It is strongly recommended that a single large complex section be constructed by specifying several smaller and less complicated sections for assembly by the user on-site.
You are advised to contact UBS for assistance in specifying large complex sections to meet your requirements.
Straight and complex sections can bespecified from high-conductivity copper, bronze, or aluminum. Flexible waveguide is manufactured from a convoluted beryllium-copper alloy material that is fully pressurizable and flexible in both the E plane and H plane. Longitudinal twists are not possible with this type of flexible waveguide. If a rigid longitudinal twist section is required, a suitable one can be specified from the UBS112 series. For longitudinal twist use the 118 series offlexible twistable waveguides.
Section Dimensions
The maximum length of a rigid waveguide is 6ft, a flexible waveguide is 2ft,and a flexible twistable waveguideis 4ft.
Tips and Suggestions
Large sections manufactured from copper should be avoided. Instead, use bronze for additional strength.It is strongly recommended that a single large complex section be constructed by specifying several smaller and less complicated sections for assembly by the user on-site.
You are advised to contact UBS for assistance in specifying large complex sections to meet your requirements.
FLANGE2 HOLES
DESCRIPTION
PAINT
FINISH
SELECT LENGTHS
SELECT WAVEGUIDE
- Home
- waveguide-index
- S111-Rectangular-Waveguides
SELECT LENGTHS
Precision Rectangular Waveguide Solutions
From Stock to Custom OEM, unlock superior RF performance with UBS's comprehensive Rectangular Waveguide Product Line, engineered to meet the rigorous demands of both commercial and military applications. Whether you require immediate stock availability or bespoke engineering, our solutions ensure mission-critical reliability.
Extensive Inventory: WR-28 to WR-650
Eliminate supply chain delays with our vast inventory of rectangular waveguide raw materials. We stock standard sizes ranging from WR-28 to WR-650, ready for immediate deployment in your projects. Our intuitive Section Numbering System empowers you to specify the exact waveguide sections required, ensuring precise fit and optimal performance without the guesswork.
From Stock to Custom OEM, unlock superior RF performance with UBS's comprehensive Rectangular Waveguide Product Line, engineered to meet the rigorous demands of both commercial and military applications. Whether you require immediate stock availability or bespoke engineering, our solutions ensure mission-critical reliability.
Extensive Inventory: WR-28 to WR-650
Eliminate supply chain delays with our vast inventory of rectangular waveguide raw materials. We stock standard sizes ranging from WR-28 to WR-650, ready for immediate deployment in your projects. Our intuitive Section Numbering System empowers you to specify the exact waveguide sections required, ensuring precise fit and optimal performance without the guesswork.
