Termination
(Low Power short-length)
Series No: 133
Part Description

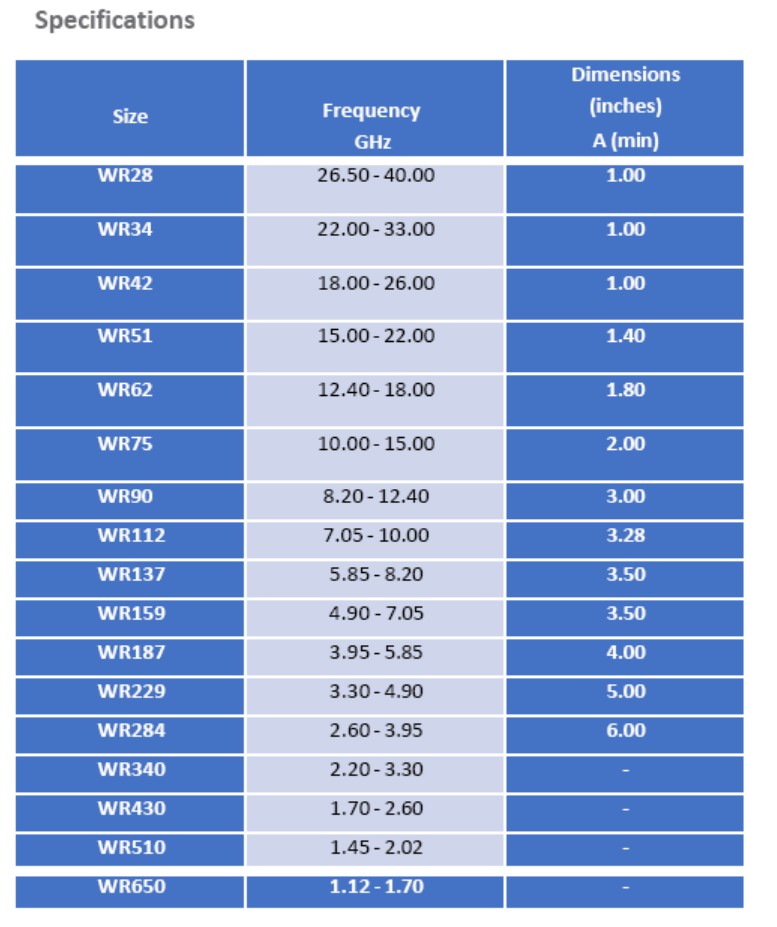

UBS’ standard product line of precision low-power terminations uses spear load elements for optimum electrical performance. Maximum power handling capacity: 0.5 watt for waveguide sizes WR-28 to WR-42, 1 watt for WR-51 and WR-62, 2 watts for waveguide sizes WR-75 to WR-650
UBS’ standard product line of precision low-power terminations uses spear load elements for optimum electrical performance. Maximum power handling capacity: 0.5 watt for waveguide sizes WR-28 to WR-42, 1 watt for WR-51 and WR-62, 2 watts for waveguide sizes WR-75 to WR-650
