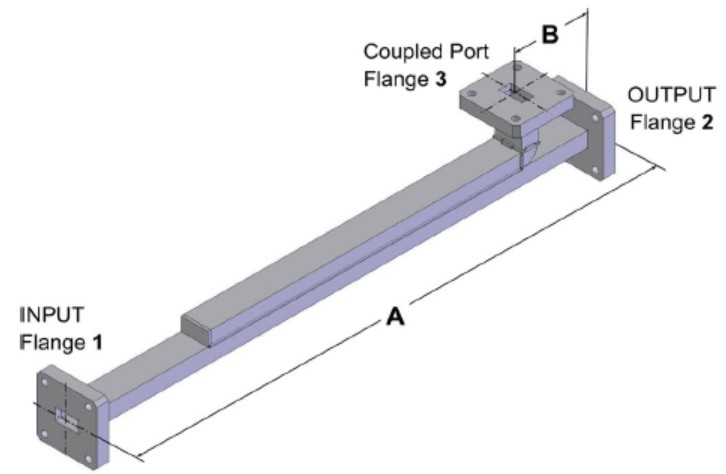

Broadwall Directional Coupler
Series No: 141
Part Description

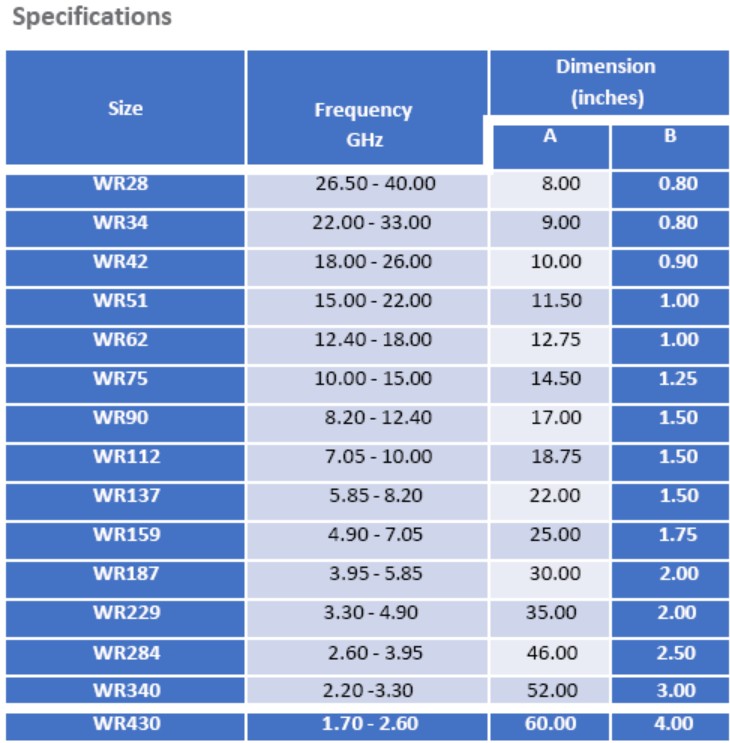

UBS offers a standard product line of multi-hole waveguide broadwall directional couplers covering waveguide sizes from WR-28 through WR-650. The optimum electrical characteristics of high directivity and coupling flatness are achieved utilizing a precision machined Tchebyscheff coupling hole distribution and a precision ground tapered load element in the secondary arm.
UBS offers a standard product line of multi-hole waveguide broadwall directional couplers covering waveguide sizes from WR-28 through WR-650. The optimum electrical characteristics of high directivity and coupling flatness are achieved utilizing a precision machined Tchebyscheff coupling hole distribution and a precision ground tapered load element in the secondary arm.
Coupling: 10, 20, 30, 40, and 50 dB
