Dual Broadwall
Directional Coupler
Series No: 142
Part Description

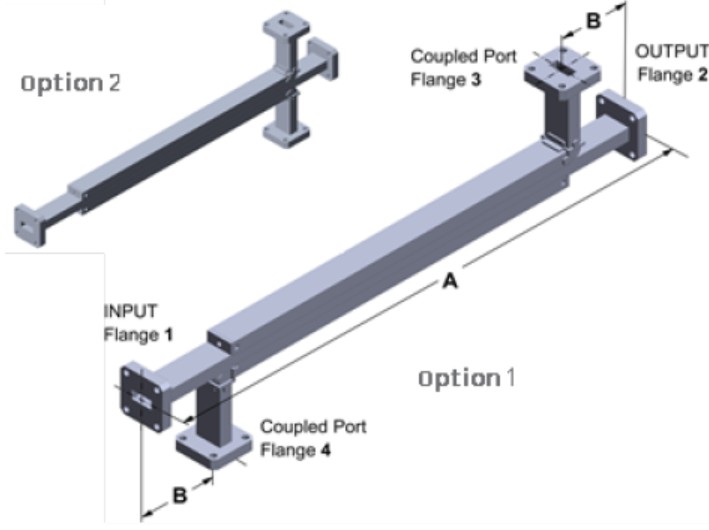

UBS offers a standard line of dual-arm multi-hole broadwall directional couplers covering waveguide sizes from WR-28 through WR-284 and configured similarly to the single-arm models.
UBS offers a standard line of dual-arm multi-hole broadwall directional couplers covering waveguide sizes from WR-28 through WR-284 and configured similarly to the single-arm models.

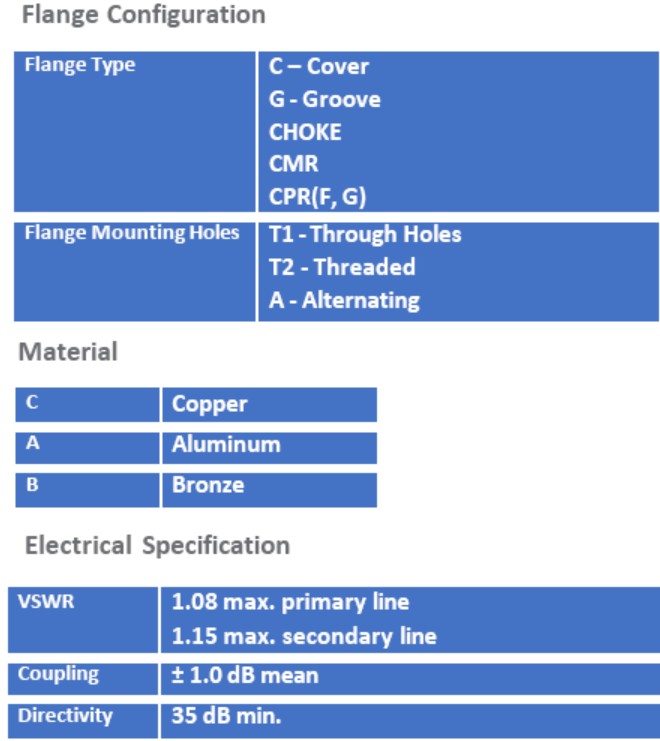

Coupling: 10, 20, 30, 40, and 50 dB
