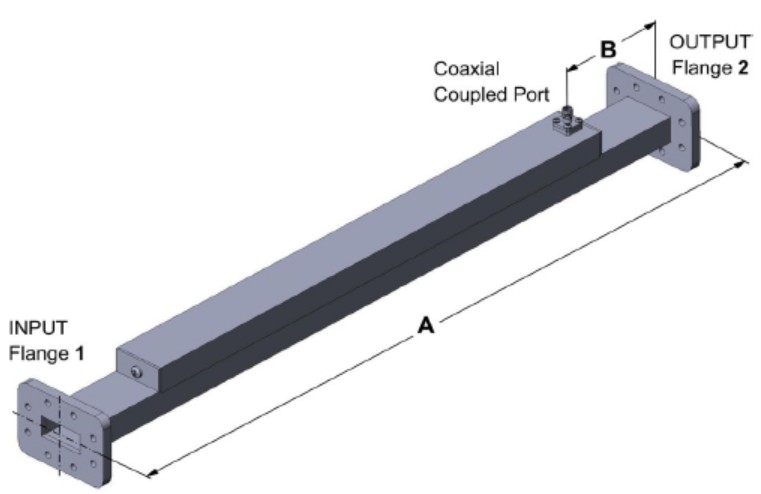

Broadwall Directional Coupler

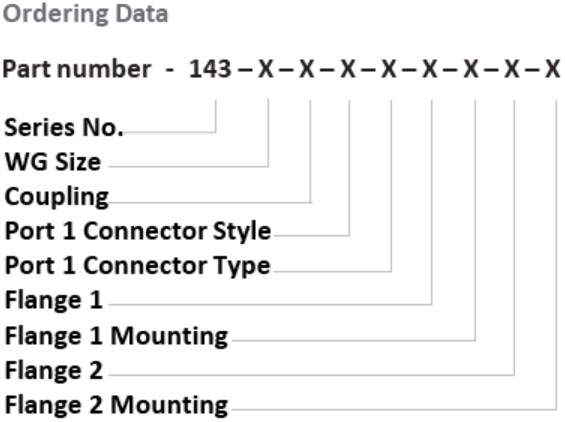

Series No: 143
Part Description

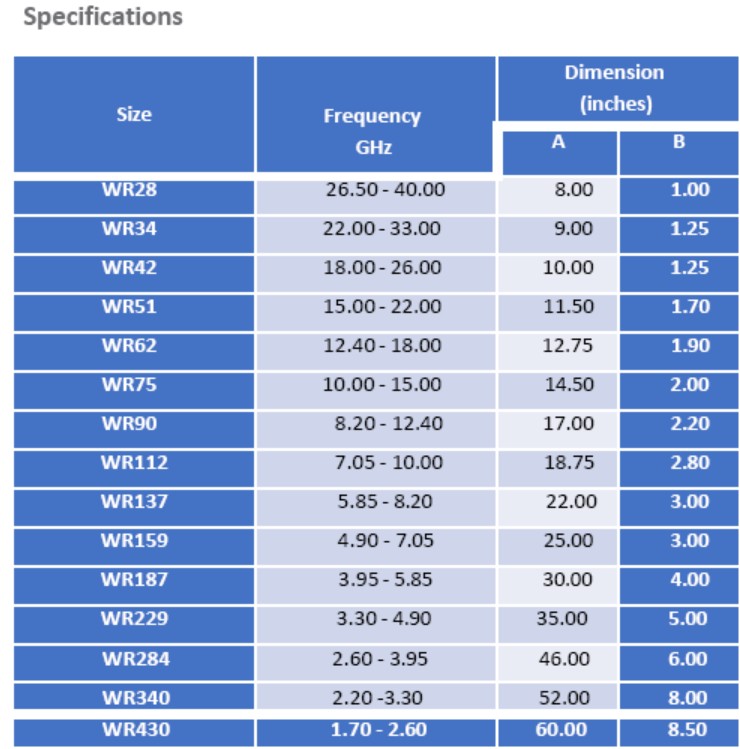

UBS offers a standard product line of multi-hole coax secondary broadwall couplers covering waveguide sizes from WR-28 through WR-650. The optimum electrical characteristics of high directivity and coupling flatness are achieved utilizing a precision machined Tchebyscheff coupling hole distribution and a precision ground tapered load element in the secondary arm.
UBS offers a standard product line of multi-hole coax secondary broadwall couplers covering waveguide sizes from WR-28 through WR-650. The optimum electrical characteristics of high directivity and coupling flatness are achieved utilizing a precision machined Tchebyscheff coupling hole distribution and a precision ground tapered load element in the secondary arm.
Coupling: 10, 20, 30, 40, and 50 dB
For 60 dB coupling, an attenuator will be used on the
coaxial port and the coupling mean is ±1.0 dB frequency
response.

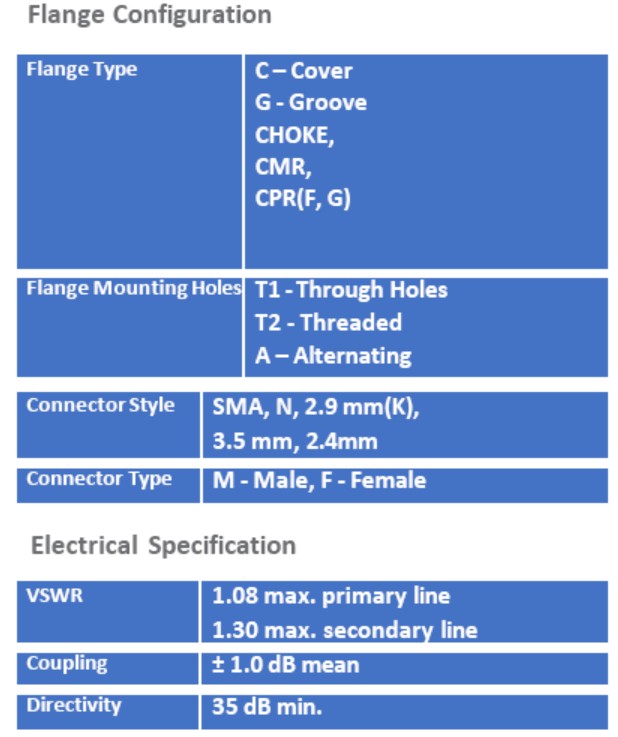

Note: For connector style, contact factory for 2.9 mm(K), 3.5 mm, 2.4 mm
For 60 dB coupling, an attenuator will be used on the
coaxial port and the coupling mean is ±1.0 dB frequency
response.
Note: For connector style, contact factory for 2.9 mm(K), 3.5 mm, 2.4 mm
