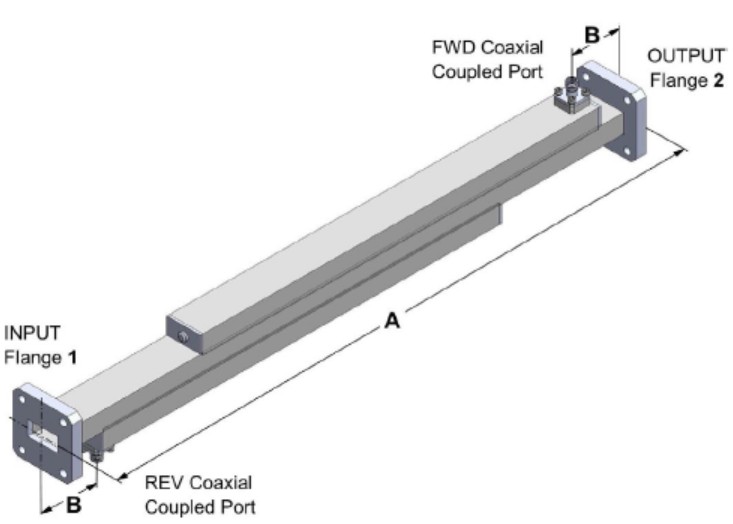

Dual Broadwall
Directional Coupler
Series No: 144
Part Description

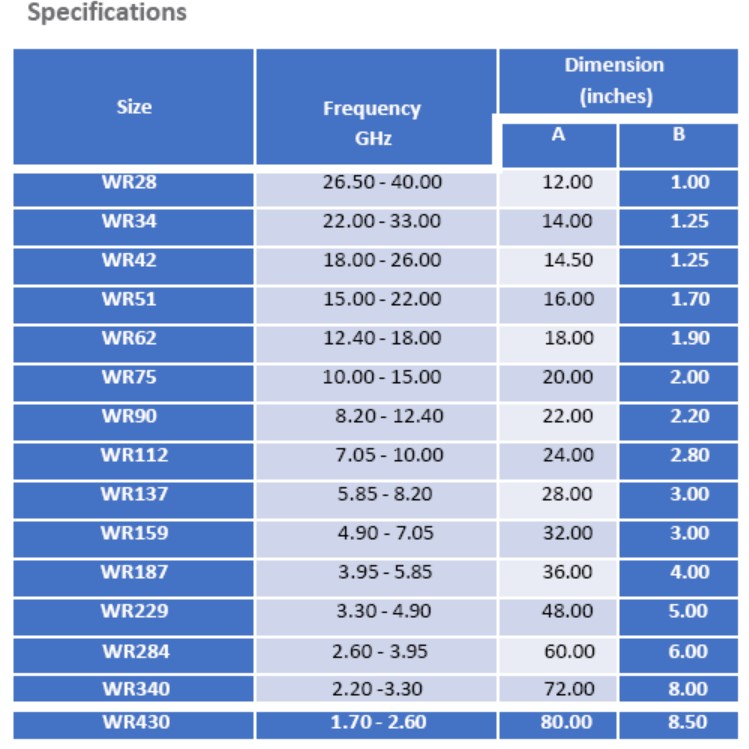

UBS offers a standard product line of dual arm multi-hole coax dual directional couplers covering waveguide sizes from WR-28 through WR-650 and configured similarly to the single arm models.
UBS offers a standard product line of dual arm multi-hole coax dual directional couplers covering waveguide sizes from WR-28 through WR-650 and configured similarly to the single arm models.
Coupling: 10, 20, 30, 40, and 50 dB

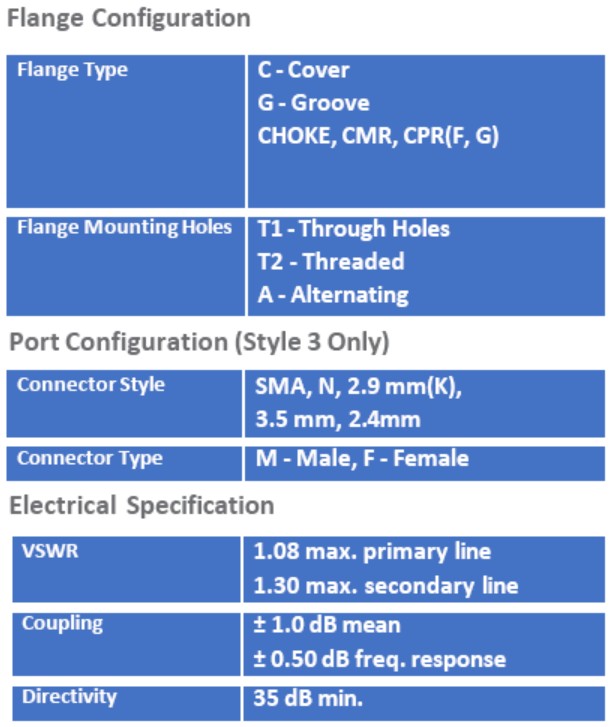

Note: For connector style, contact factory for 2.9 mm(K), 3.5 mm, 2.4 mm
Note: For connector style, contact factory for 2.9 mm(K), 3.5 mm, 2.4 mm
