Waveguide Bulkhead
Feed Assembly
Series No: 154
Part Description

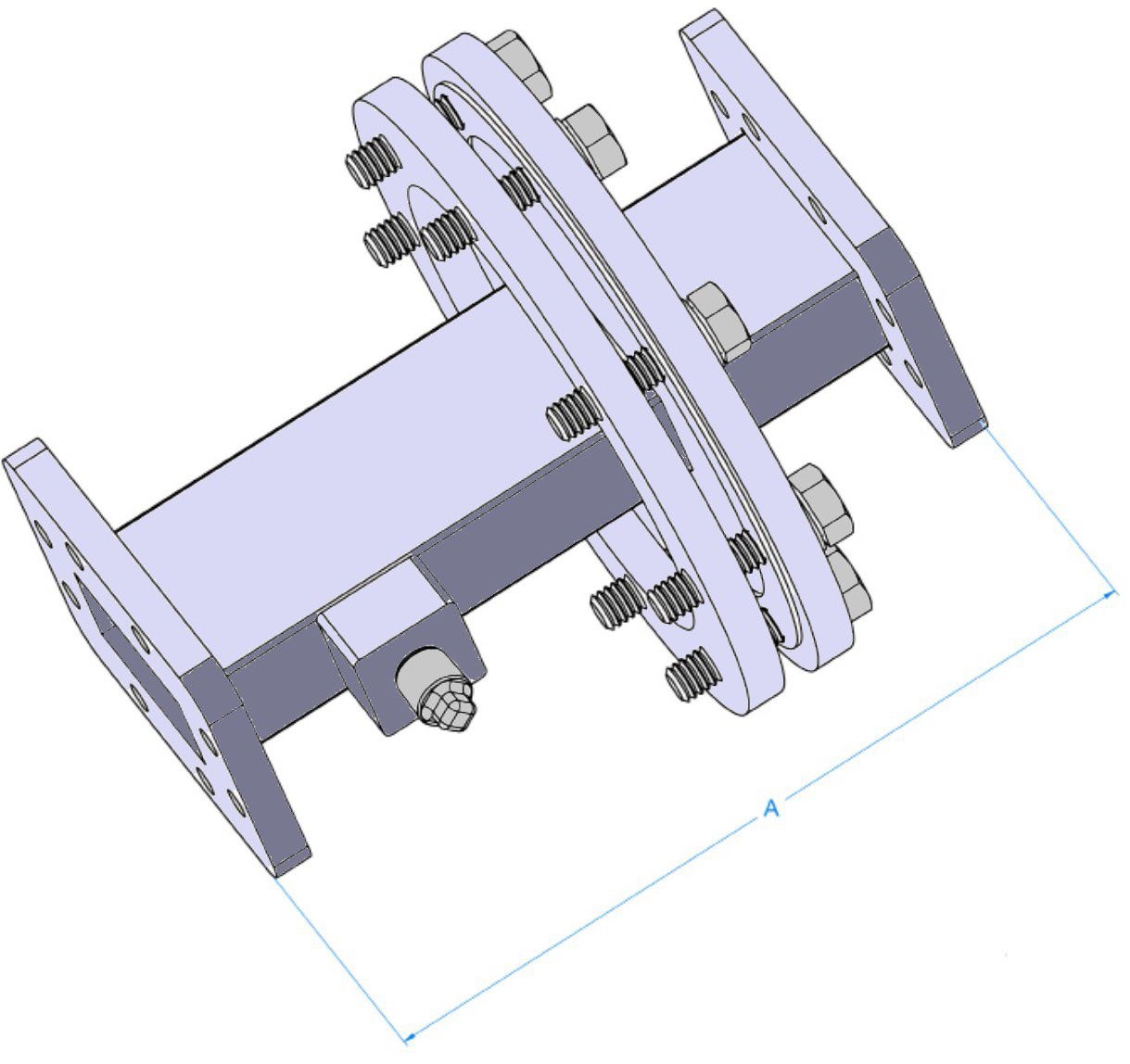

The 154 seriesWaveguide Bulkhead Feed Assembly was designed to be a wall feed-through in assemblies. A gasket is provided on the panel mount side for weather resistance and the adapter is finished in a baked enamel paint.
These adapters operate over the full waveguide bandwidths and are available forWR75 toWR137 waveguide sizes.
Standard lengths are 5.00 inches with custom lengths and various flange types available upon request.
The 154 seriesWaveguide Bulkhead Feed Assembly was designed to be a wall feed-through in assemblies. A gasket is provided on the panel mount side for weather resistance and the adapter is finished in a baked enamel paint.
These adapters operate over the full waveguide bandwidths and are available forWR75 toWR137 waveguide sizes.
Standard lengths are 5.00 inches with custom lengths and various flange types available upon request.

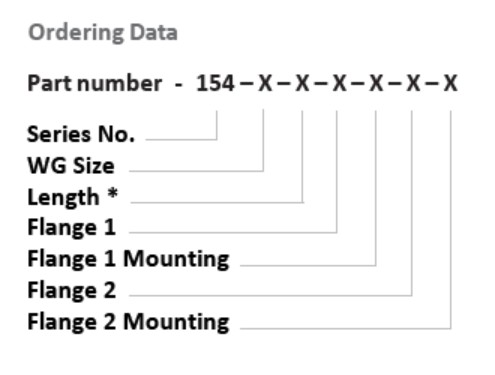

Flange Configuration
| FlangeType | C - Cover G - Groove CHOKE CMR CPR CPR (F,G) |
| Flange Mounting Holes | T1 - Through Holes T2 - Threaded A - Alternating |
| Twist Angle | 1 - 90º Twist 0 - 45º Twist |
| Hardware | 0 - Not required 1 - Required |
| Size | Frequency(GHz) | Length (Inches) |
| WR34 | 10.00 -15.00 | 5.0 |
| WR51 | 8.20 - 12.40 | 5.0 |
| WR62 | 7.05 - 10.00 | 5.0 |
| WR650 | 5.85 - 8.20 | 5.0 |
Specifications
