Horn Antenna Series

Series No: 155

Part Description
UBS offers a series of precision horn antennas covering waveguide sizes from WR-28 through WR-650.
The assembly construction includes precision ground observing elements for optimum electrical performance.

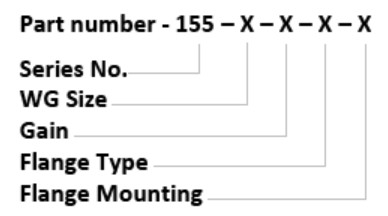

s155_ordering_information
Flange Configuration
FlangeType     C - Cover
    G - Groove
    CHOKE
    CMR
    CPR
    CPR (F,G)
Flange Mounting Holes     T1 - Through Holes
    T2 - Threaded
    A - Alternating
Twist Angle    1 - 90º Twist
   0 - 45º Twist
Hardware     0 - Not required
    1 - Required
