Military

Product Detail

• Constant Output Power/Constant Gain
• Military Approved Design
• SATCOM DAMA Application
• Rugged Construction
• Wide Operating Temperature Range
• EMI Filter (Optional)
Part Description

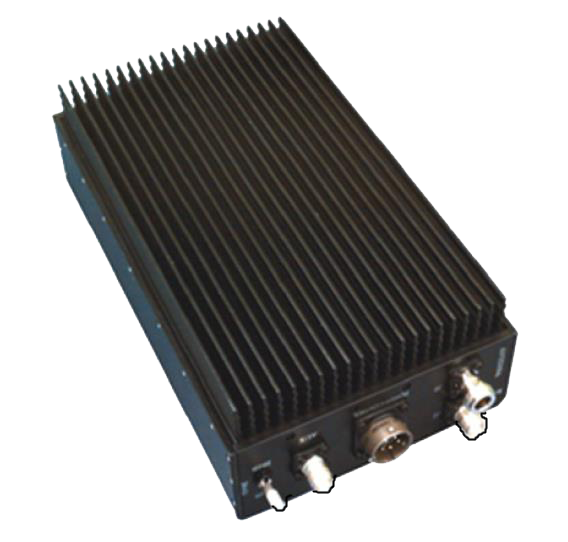

Unique Broadband Systems Ltd. manufactures a complete line of UHF SATCOM DAMA SSPA Solid State UHF power amplifiers.

The UHF SATCOM DAMA SSPA is rugged in its construction to permit operation at elevations from sea level up to 18,000 feet over a wide temperature range.

A unique feature of this amplifier is its Solid-State switching circuit that serves several functions:

     • Protective power reduction in the event of excessive operating conditions
     • Response to transmitter keying and transmit blanking
Model Data Sheet Link Freq.
(MHz)		 Power
(WATTS)
RX TX
US 22/40/100LDNM datasheet 240 - 270 290 - 320 100
US 22/40/100LNM datasheet 240 - 270 290 - 320 100
US 225/400/100SNC datasheet 240 - 270 290 - 320 100
US 225/400/100SNC-A datasheet 240 - 270 290 - 320 100
US 240/318/100LNF datasheet 240 - 270 290 - 320 100
US 240/318/100LNF-01 datasheet 240 - 270 290 - 320 100
US 240/318/140LNF-A datasheet 225-400 225 - 400 140
US 290/320/200PA datasheet N/A 290 - 320 200
Size Specifications
