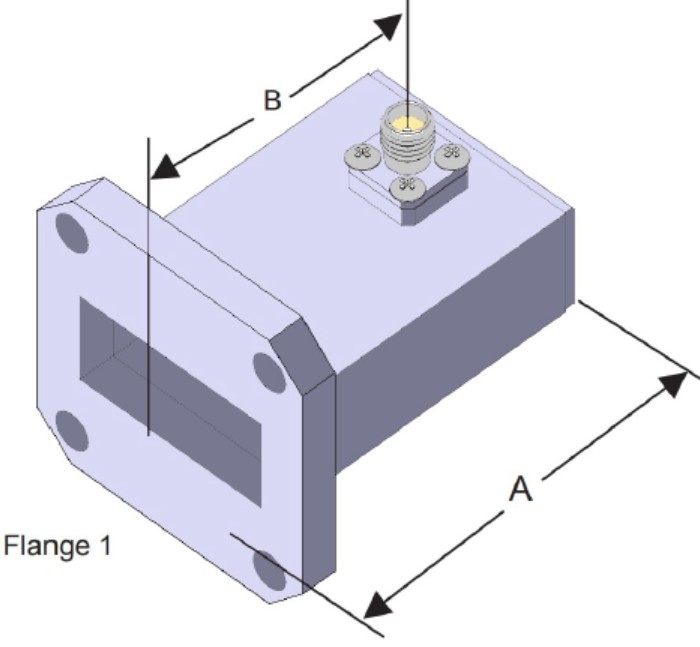

Right Angle Adapter
(Waveguide to Coaxial)
Series No: 121
Part Description
UBS offers a standard product line of precision rectangular waveguide-to-coax adapters covering waveguide sizes from WR-28 throughWR-430.
UBS offers a standard product line of precision rectangular waveguide-to-coax adapters covering waveguide sizes from WR-28 throughWR-430.
- Home
- waveguide-index
- S121S121E-Waveguide-to-Coax-Adapter

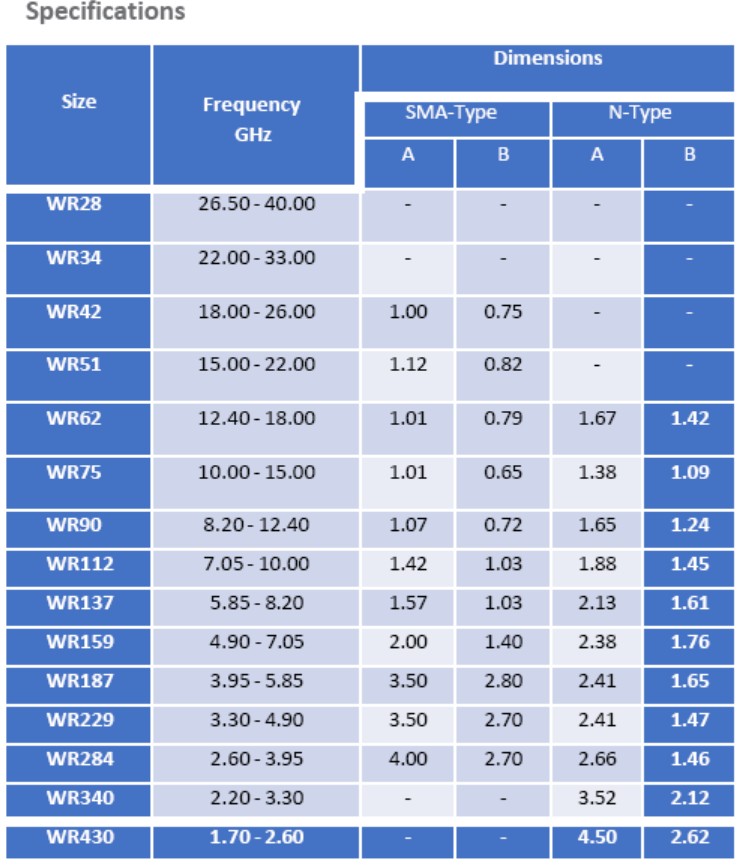

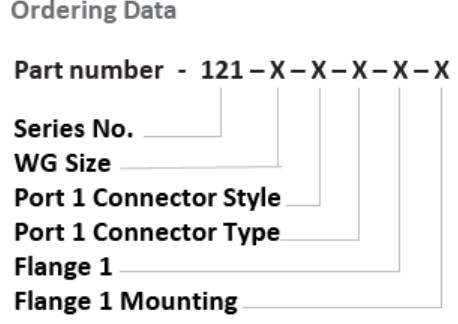

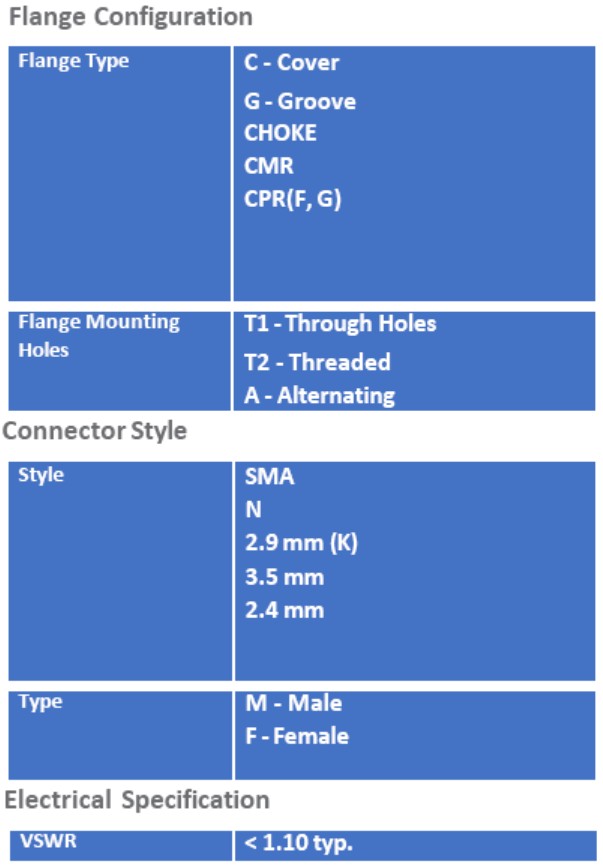

| Size | Freq. (GHz) |
C | G | CHOKE | CMR | CPR | MODEL NUMBER | DRAWING LINK | Datasheet | Connector | Length A |
Length B |
| WR28 | 26.50 - 40.00 | • | • | • | 121-28-K-F-C-TX | link | K | 0.83" | 0.65" | |||
| WR34 | 22.00 - 33.00 | • | • | • | 121-34-K-F-C-TX | link | K | 1.00" | 0.75" | |||
| WR42 | 18.00 - 26.50 | • | • | • | 121-42-SMA-F-C-TX | link | SMA | 0.94" | 0.75" | |||
| WR51 | 15.00 - 22.00 | • | • | • | 121-51-SMA-F-C-TX | link | SMA | 1.12" | 0.82" | |||
| WR62 | 12.40 - 18.00 | • | • | • | 121-62-SMA-F-C-TX | link | SMA | 1.01" | 0.79" | |||
| WR75 | 10.00 - 15.00 | • | • | • | • | • | 121-75-SMA-F-C-TX | link | SMA | 1.01" | 0.65" | |
| WR90 | 8.20 - 12.40 | • | • | • | • | • | 121-90-N-F-CPR-TX | link | N | 1.65" | 1.25" | |
| WR102 | 7.00 - 11.00 | • | • | • | • | • | 121-102-N-F-CPR-TX | N | ||||
| WR112 | 7.05 - 10.00 | • | • | • | • | • | 121-112-N-F-CPR-TX | link | N | 1.89" | 1.45" | |
| WR137 | 5.85 - 8.20 | • | • | • | • | • | 121-137-N-F-CPR-TX | link | N | 2.14" | 1.61" | |
| WR159 | 4.09 - 7.05 | • | • | • | • | • | 121-159-N-F-CPR-TX | link | N | 2.00" | 1.40" | |
| WR187 | 3.95 - 5.85 | • | • | • | • | • | 121-187-N-F-CPR-TX | link | N | 3.50" | 2.80" | |
| WR229 | 3.30 - 4.90 | • | • | • | • | • | 121-229-N-F-CPR-TX | link | N | 3.50" | 2.70" | |
| WR284 | 2.60 - 3.95 | • | • | • | • | • | 121-284-N-F-CPR-TX | link | N | 4.00" | 2.70" | |
| WR340 | 2.20 - 3.30 | • | • | • | • | • | 121-340-N-F-CPR-TX | link | N | 3" X 3" | ||
| WR430 | 1.70 - 2.60 | • | • | • | • | • | 121-430-N-F-CPR-TX | link | N | 4.00" | 2.33" | |
| WR650 | 1.12 - 1.70 | • | • | • | • | • | 121-650-N-F-CPR-TX | link | N | 5.79" | 2.91" |
